Hydraulic Press for Plastics Model DG2430 - Ideal for Compression and Transfer Molding

Hydraulic Metal Presses

Manufacturer: YUMZ LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Hydraulic press for plastics, model DG2428 Hydraulic press for plastics model DG2432 Hydraulic press for plastics model DE2430 Hydraulic press for plastics model DE2430 Hydraulic press for plastics model DE2428

Description

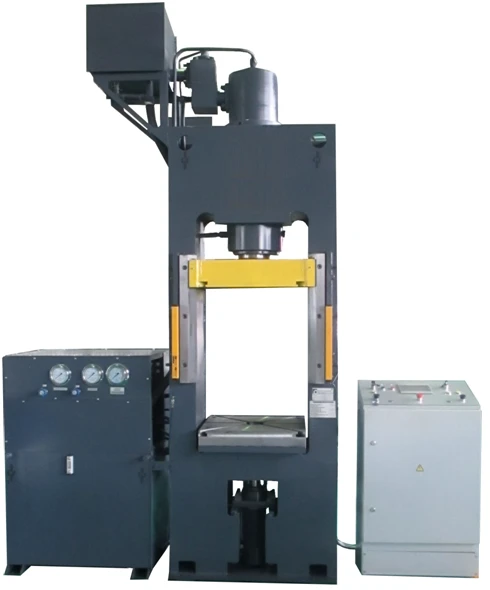

Hydraulic press model DG2430 is designed for direct (compression) and injection (transfer) pressing of products from thermosetting plastics. The hydraulic press model DG2430 can also be used for manufacturing of rubber products and for work with thin sheet metal. The press can be used in automotive, chemical, radio-technical, instrument-making industries. The press is characterised by high quality and long service life.

Specifications

Type of product according to PP RF 616

Hydraulic presses

Rated press force

1000kN

Slider stroke

500 mm

Maximum distance between table and slider

800 mm

Table dimensions LxB

710x630mm mm

Nominal ejector force

63kN

Ejector stroke

200 mm

Slider idle speed downward, not less than

300mm/sec

Slider idle speed upwards, not less than

220mm/sec

Slider stroke speed variable at up to 30% of nominal force, not less than 3276691:Slider stroke speed variable at up to 30% of n

50 ... 6mm/sec.

Speed of working stroke of the slider at the force over 30% of the nominal, not less than

6mm/sec.

Speed of working stroke of ejector at force up to 30% of nominal, not less than

100 ... 25mm/sec.

Speed of working stroke of ejector at force over 30% of nominal, not less than

25mm/sec.

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
