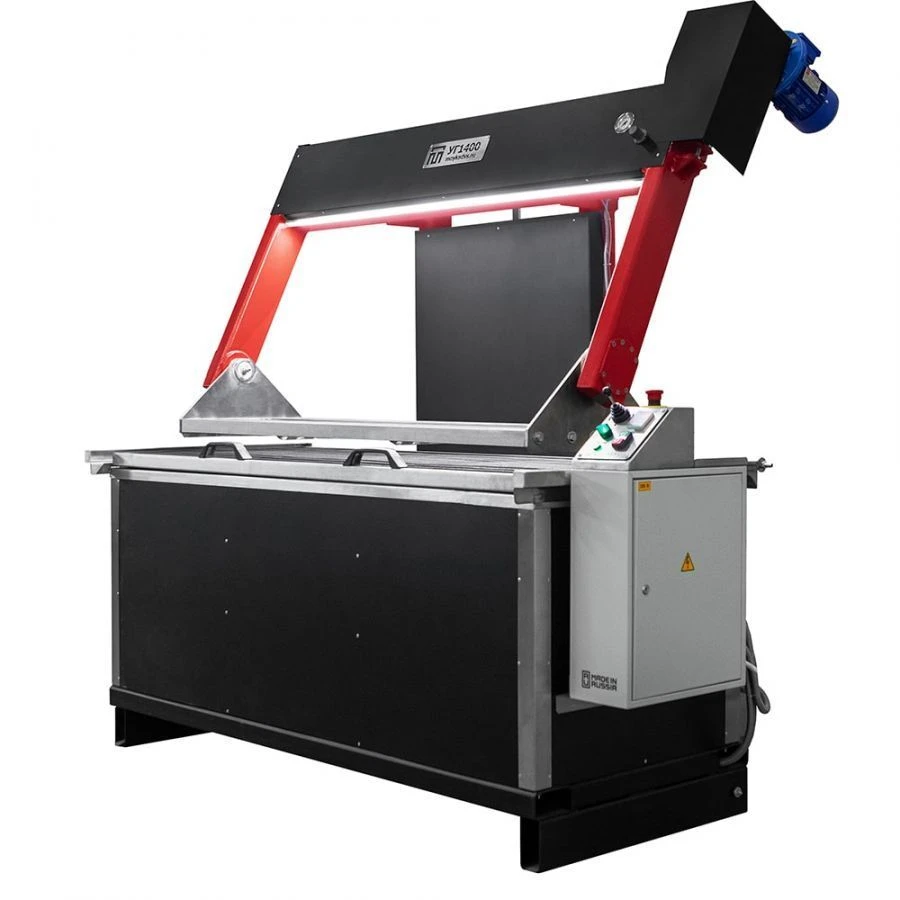

Hydraulic Testing Machine for Cylinder Heads - Series UG for Effective Testing

Advanced Measurement Equipment

Manufacturer: MOTOR TECHNOLOGIES LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Model range: UG1000, UG1200, UG1400, UG1500, UG1600. The UG series hydraulic test rig is designed to test both the blocks themselves and cylinder heads. The principle of operation of the equipment is to test assemblies for tightness using compressed air in a water environment.

The temperature of water in the tank is brought to the required temperature by means of a tubular electric heater (TEN). The part under examination is fixed to the turntable by special clamps supplied in the set. Compressed air from the pneumatic system (standard compressor) is supplied to the part.

Raising/lowering of the rotary table is carried out by a reliable Italian hydraulic station. By means of the electric drive of the rotary table rotation, the workpiece is rotated at any angle, which provides access to all hidden cavities. A convenient 4-position joystick located on the control panel is designed for all working operations.

The pressure is monitored by a pressure gauge.

Specifications

Absolute error tolerance limits of the probe head MPER, µm

3000

Limits of permissible absolute error of volumetric measurements MPEE, µm

3000

Number of simultaneously and coherently controlled coordinates

1 pcs

Linear displacement sensor resolution (µm)

3000

X-axis travel range

0...200 mm

Y-axis travel range

0...300 mm

Z-axis travel range

10...500 mm

Permissible part weight

250...350 kg

Type of product according to PP RF 616

Instruments and other instruments for measurement, control and testing

Workpiece length

1000...1500 mm

Maximum part weight

250...350 kg

Total length of the machine

1650...2360 mm

Total width of the unit

1250...1700 mm

Total installation height

1600...1750 mm

Scope

0.53...1.8

Pressure

0.5 MPa

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
