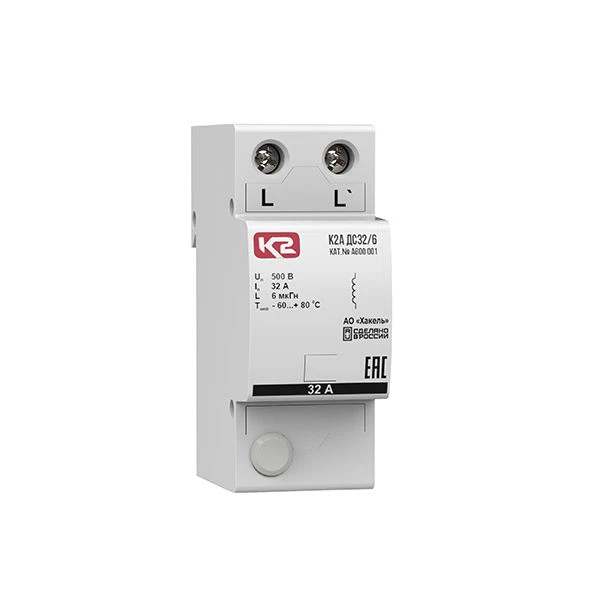

Impulse Separation Choke K2A DS32/6 for Surge Protective Devices

Available for Import

Impulse Separation Choke K2A DS32/6 for Effective Surge Protection

Inductive Coils & Chokes

Manufacturer: HAKEL OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The K2A DS32/6 pulse isolating choke is designed to coordinate the operation of Class I and Class II ultrasonic devices (or Class II and Class III ultrasonic devices) based on varistors when the distance between them on the power supply cable is less than 10 metres.

Specifications

Current type

DC/variable, 50 Hz

Rated current

32 A

Weight

157 year

Inductance

6 µHn

Overall dimensions (HxWxH), mm

92x36x66

Rated mains voltage

500 V

Operating temperature

-60...80 °C

Mounting

DIN rail 35 mm
