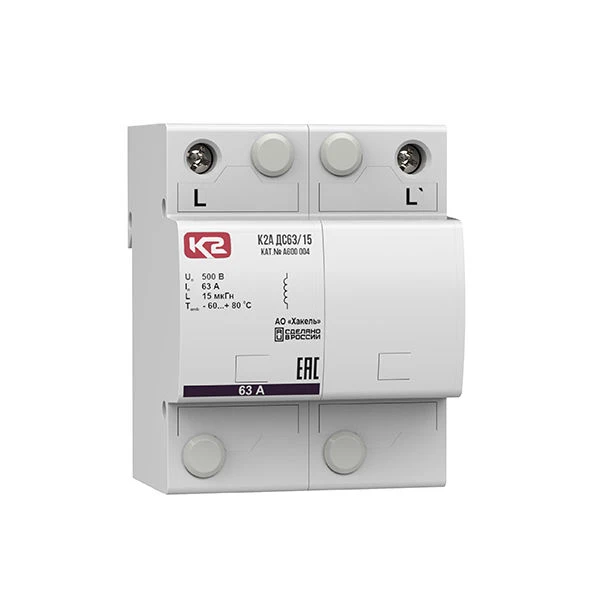

Available for ImportImpulse Separation Choke K2A DS63/15 for Surge Protection Applications
Manufacturer:HAKEL OJSC
Price:Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Pulse isolating choke K2A DS63/15 is intended for coordination of operation of ultrasonic devices of test class I, made on the basis of arresters, and ultrasonic devices of test class II, made on the basis of varistors, in case the distance between them on the power supply cable is less than 10 metres.
Specifications
Overall dimensions (HxWxH), mm
92x72x66
Weight
600 year
Operating temperature
-60...80 °C
Inductance
15 µHn
Rated current
63 A
Nominal system voltage
500 V
Current type
DC/variable, 50 Hz
Mounting
DIN rail 35 mm
