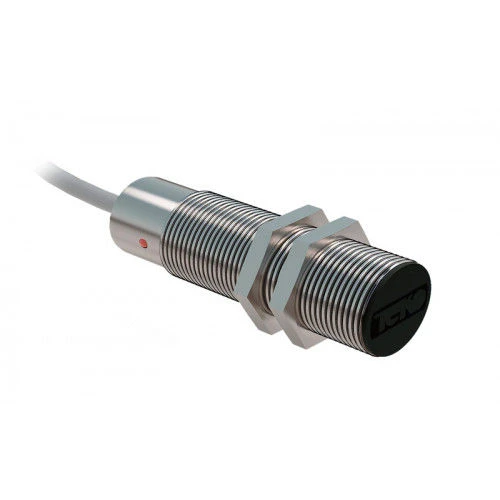

Inductive Non-Contact Sensor for Automation ISBm A3B8-31P-4-LZ-D-VP-3K

Available for Import

Inductive Non-Contact Sensor ISBm A3B8-31P-4-LZ-D-VP-3K for Automation Control

Measurement and Control Devices

Manufacturer: TEKO OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Inductive non-contact sensor ISBm A3B8-31P-4-LZ-D-VP-3K is designed for detection of the controlled object and contactless switching of actuators in automated devices and systems of marine vessels, having a source of constant voltage from 10 to 30V. The sensor is designed for operation in conditions of increased vibration.When any metal approaches the sensitive zone of the sensor, the threshold device is triggered and the corresponding output signal of the electronic key of the sensor is formed, which is used for switching electrical circuits and signalling.

Specifications

Contact type / Output structure

PNP Closing

Voltage drop at Imax, Ud

?2,5 ?

Product length

61 mm

Diameter of threaded body

M16

Nominal sensing distance

4 mm

Mounting type

Built-in

Enclosure size, DxWxDl

M16x1x61

Wiring diagram

3-wire

Special purpose

Marine version

Working clearance

0...3.2 mm

Operating temperature range

-60S...+65S

Supply voltage ripple factor

?67% Interference protected

For harsh environments

Temperature range -60C...+65C

Degree of protection according to GOST 14254-96

IP68 / IP67

Comprehensive protection

Got it

Light indication

Got it

Connection / Connection

Cable KPMPPGng(A)-HF 3x0,35 TU16.?18-114-2012; L=3m

Switching frequency, Fmax

850

Operating voltage range, Urab

10...30 V

Maximum operating current

0.25 A

Housing material

LS59-1

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
