Installation Pin Type C ZPC-12 for BriBase Available for Import

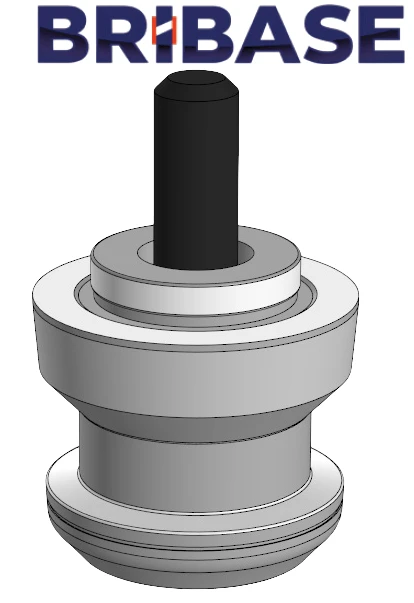

Installation Pin Type C ZPC-12 for Secure Fastening in BriBase Applications

Machine Workpiece Holders
Manufacturer: ARMORICA LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

Setting pin type C is designed for fixing the tooling in the base device. Finger type C is used for clamping the workpiece. It is only used in conjunction with type A and B pins.

The seating surface of the type C pin is a reduced cone. The pin is inserted into the mating hole with a gap. The diameter of the pin is 39.3 mm.

Length 39.5 mm. Seating diameter 25h4 mm. Length of the seating area 5.0 mm.

Fixing threaded hole M12. Internal hexagon size 10 mm. Made of high-strength hardened steel.

Specifications

Type of product according to PP RF 616
Mandrels for fixing tools
Type
C
Overall diameter
39.3 mm
Overall length
39.5 mm
Seating diameter
25 mm
Length of planting area
5 mm
Thread diameter
B1/B8 2100/900 MHz mm
Save Your Time

Share your requirements for a quick response!

Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
