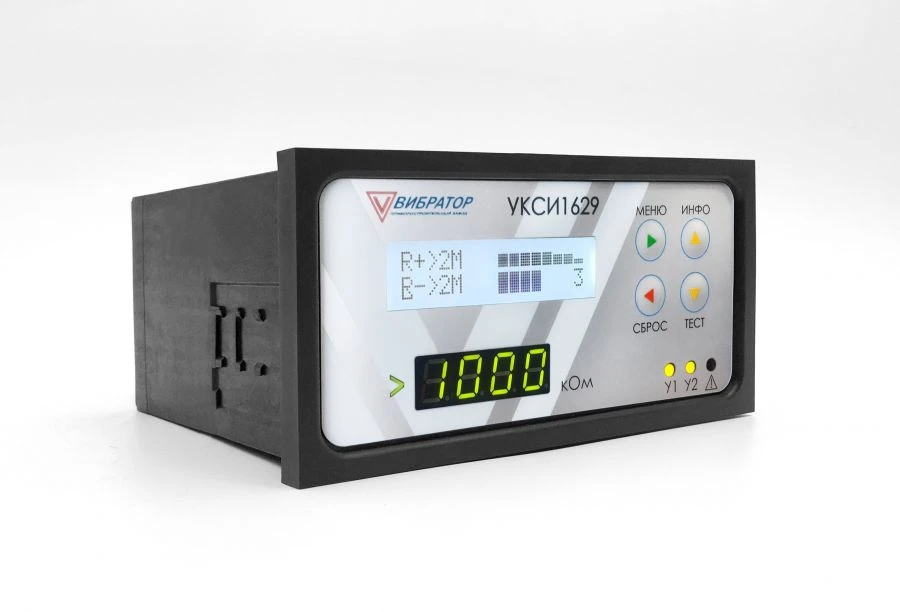

Insulation Resistance Monitoring Device UKSI1629

Insulation Resistance Monitoring Device UKSI1629

Brand: VIBRATOR

$210 - $660 USD

MOQ: 10 pieces

Key Features

Measurement range of electrical resistance in AC networks: 0...9999000 yd³

Measuring range of electrical resistance in DC networks, MOhm: 0...1000000 yd³

Limits of permissible basic reduced error: 5...10 set

Voltage range of the monitored AC mains network: 0...690 thousand m³

Supplier Information

VIBRATOR OJSC

🇷🇺 📦 🏭 🛡️

View All Products

Quick Inquiry

More from VIBRATOR

Current Protection Relay RZT-1001

$15-$60

Voltage Protection Relay RZN-1001

$15-$48

Frequency Protection Relay RZCh-1001

$15-$48

Power Protection Relay RZM-1001

$15-$60

Flat Panel Video Monitor VMP1225-AD

$900-$3,600

Description

UKSI1629 insulation resistance monitoring device is designed to measure and monitor the equivalent insulation resistance in AC electrical networks in the frequency range from 45 to 440 Hz with isolated neutral, as well as DC networks isolated from ground. UKSI1629 can be used to monitor both de-energised and energised single- and three-phase AC or DC networks.

Specifications

Measurement range of electrical resistance in AC networks

0...9999000 yd³

Measuring range of electrical resistance in DC networks, MOhm

0...1000000 yd³

Limits of permissible basic reduced error

5...10 set

Voltage range of the monitored AC mains network

0...690 thousand m³

DC monitored mains voltage range

24...400 thousand m³

Number of settings

2 µGy

Measurement cycle time at maximum capacity

80 -

Equivalent capacitance of the monitored network with respect to earth, alternating current

Up to 600 µF

Equivalent capacitance of the monitored network to ground, direct current

Up to 300 µF

Interface

RS-485 (Modbus RTU)

Analog output

0-20 mA, 4-20 mA

Degree of protection according to GOST 14254-2015

IP20, IP54
