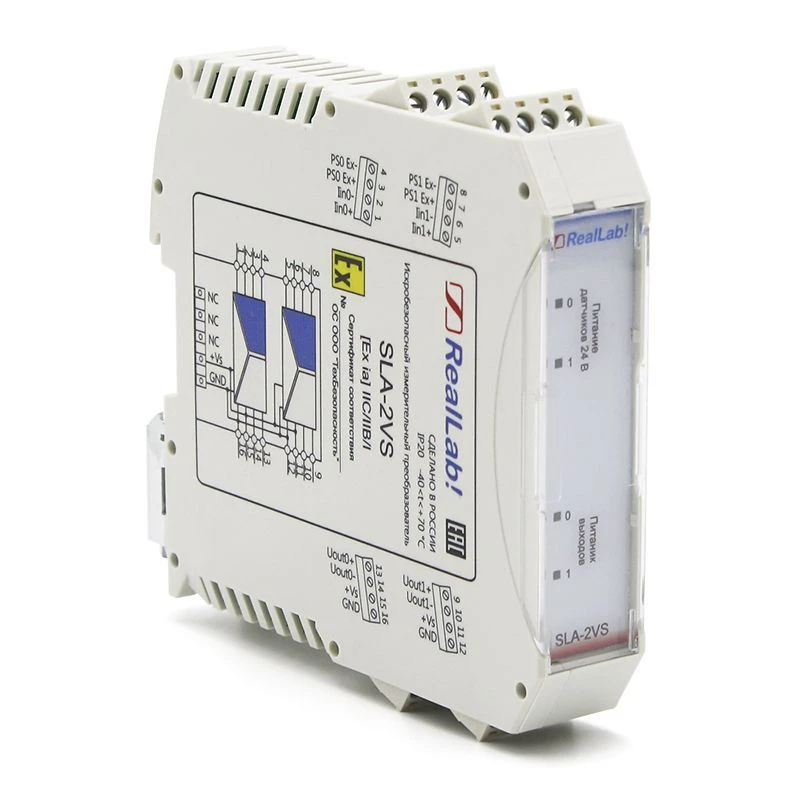

Purpose: intrinsically safe transmission of vibration sensor signals from hazardous area to explosion-proof area
Intrinsic barrier type: active with galvanic isolation
Input signal type: analogue 0.5...20 V
Number of connected sensors: 2
Operating frequency range: 0...10 kHz
Number of outputs: 2
Output signal type: analogue 0,5...20 V
Conversion error: not more than 0,1 %
Galvanic isolation: channel isolation of inputs, outputs, power supply - 2500 V
Types of protection: against incorrect polarity connection of the power supply source
Power supply voltage: 10-30 V
Power consumption: not more than 2 W
Explosion protection marking: [Ex ia] IIC/IIB/I
Operating temperature range: -40°C to +70°C
Average MTBF: 100 000 hrs.
Average service life, not less than 12 years
Overall dimensions (HxWxH): 99.4x22.5x109
Mounting: on DIN-rail
Degree of protection: IR20 according to GOST 14254-2015
Warranty: 18 months
