Iridium Server IR-224X 2U for SFF Drives

Available for Import

Iridium Server IR-224X - 2U Rack Server for Efficient Data Storage

Versatile Computing Machines

Manufacturer: BUSINESS SYSTEM TELECOM LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

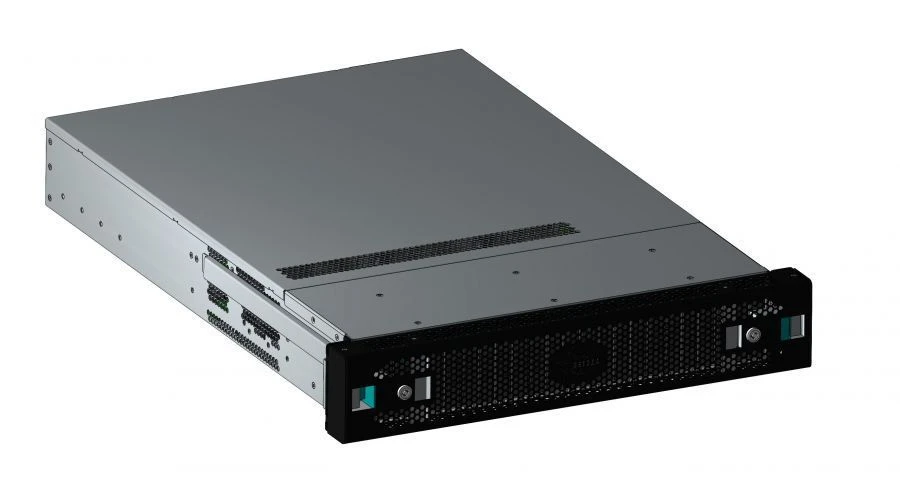

The IRIDIUM IR-224X server is a rack-mountable server with a height of 2 mounting units (2U), having 24 bays for SFF (2.5 inch) form factor disc drives and 2 bays for SFF Slimline (up to 7mm high) drives. The IR-224X server solution is designed with the application of the latest technologies, innovations and achievements in the sphere of world server building. The basis of the server is the motherboard, which hosts Intel Lewisburg PCH C620A system logic. The presence of two sockets LGA-4189 allows you to use the most modern and productive processors Intel Xeon Scalable 3rd generation (Ice Lake architecture).

Specifications

Connection interface

COM (RS-232), QSFP, RJ45, SAS, SATA, SFP, USB, VGA (D-SUB)

Operating System/Platform

supplied without operating system

Case Form Factor

2RU

Base frequency of the processor

2...3.9

RAM size

16...4096

Internal storage size

32...8192

Internal slots and connectors

2 SATA 6.0Gbps ports via 7pin connector 8 SATA 12.0Gbps ports via 2 Slimline slots 2 M.2 2280 PCIe 3.0 ports 3 PCIe 4.0 x16 slots 2 PCIe 4.0 x8 slots 4 Slimline x8 slots 1 OCP 3.0 slot 1 OCP 2.0 slot

Disposable media drive

Internal power supply

600...1600 W

Chipset

C621A

Type of memory

RDIMM/LRDIMM DDR4 3200 MHz

Built-in certified information security features

Option

Remote server management system

Armoured glass

Hardware support for virtualization

Armoured glass

Dedicated port for remote server management

Armoured glass

Supported drive interface

M.2

Number of SFF (2.5) drive slots on the rear panel

2 pcs

Number of SFF (2.5) drive slots on the front panel

24 pcs

Number of occupied units in the rack

2 pcs

Number of threads of each installed processor

16...80 pcs

Number of available slots for PCIe x16 expansion card installation

3 pcs

Number of OCP 2.0 slots

1 pcs

Number of Ethernet network ports

2 pcs

Number of slots for RAM modules

16 pcs

Number of hot-swappable power supplies installed

2 pcs

Number of installed processors

1...2 pcs

Number of cores of each installed processor

8...40 pcs

Maximum number of drives per enclosure

26 pcs

Maximum total supported RAM capacity

4096

Availability of a hardware disk controller

Armoured glass

Disk controller cache protection in case of server power loss

Option

Availability of rails for installation in the telecommunication cabinet

Armoured glass

Capacity of each installed RAM module

16...256

RAID types supported by the disk controller

0, 1, 10, 5, 50, 6, 60, JBOD, Pass-Through

Redundancy level of installed power supplies

Type of processor socket

FCLGA4189

Central processing unit manufacturing process norms

10 nm

Central Processor Code Name

Ice Lake

Generation of central processing unit

3rd Generation Intel® Xeon® Scalable Processors

Architecture

?86-64

HDD capacity

300...18432

SSHD capacity

300...600

SSD capacity

32...30720

External connectors

2 1GbE RJ45 ports 1 BMC 1GbE RJ45 control port 2 USB 3.0 Type A ports 1 VGA DB-15 port 1 serial port

Number of available slots for PCIe x8 expansion card installation

2 pcs

Number of available Slimline x8 slots

4 pcs

Number of OCP 3.0 slots

1 pcs

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
