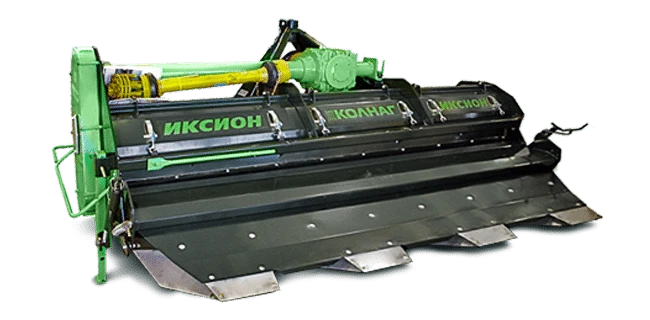

Ixion 4x90 Cultivator-Ridge Maker for Soil Tillage

Available for Import

Ixion 4x90 Cultivator-Ridge Maker for Efficient Soil Tillage

Cultivator Machines

Manufacturer: KOLNAG LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The cultivator is designed for: <ul> <li>- continuous milling of the soil with the formation of a flat surface of the field or with the formation of four ridges after the main cultivation of the soil, made by ploughs, as well as flat cutters and cheesels. It is allowed to cultivate on an unploughed field after the pass of the harrow to the depth of cultivation of the harrow. Depending on the soil condition and tractor power, the cultivation depth is up to 15 cm.</li> <li>loosening (milling) of soil in the inter-row width of 90 cm and simultaneous formation of four high-volume ridges with a fine lumpy soil structure after planting potatoes until the emergence of sprouts 5-7 cm high.

When using a cultivator, the soil should be cultivated with a milling or chisel cultivator before planting potatoes to a milling depth sufficient to form a ridge of the required height.</li> </ul>The drive of the cultivator's working bodies is carried out through a chain side reducer. Aggregated with tractors with power from 80hp to 120hp.

Specifications

Type of product according to PP RF 616

Cultivators

Number of working orans

2 pcs

Material of frame structures

Metal

Material of working elements

Metal

Width

3480 mm

Height

1340 mm

Length

2250 mm

Working width

3000 m

Type of cultivator

rotary

Weed trimming in the cultivation area, in inter-row cultivation at least

80 %

Uniformity of working depth with rotary working tools (deviation from the set working depth), not more than

2 cm

Working depth with rotary cultivators (in inter-row cultivation)

5 cm

Width of ridge on upper base, up to

225 mm

Height of formed ridge,up to

300 mm

Output per 1 hour of basic time, up to

1.45

Tractor PTO drive

540

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
