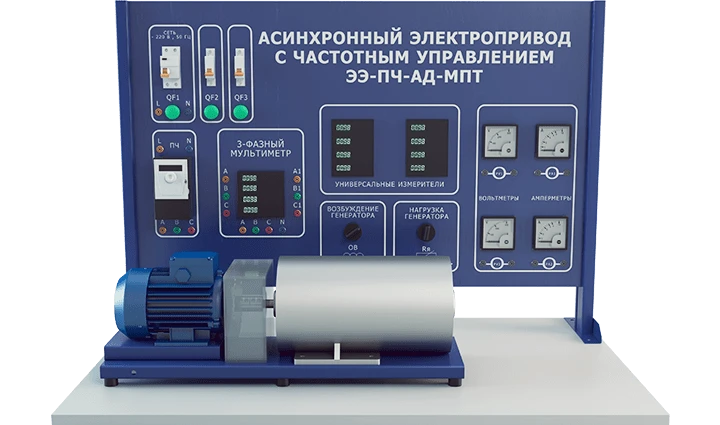

Laboratory Setup for Studying Controlled Electric Drive with Frequency Control (EE-PCHAD) and Its Applications

Study of operating characteristics and methods of regulation of asynchronous electric motor with squirrel cage rotor. Construction of natural and artificial characteristics of asynchronous motor, research of frequency converter for motor control, research of DC generator of independent excitation. The list of works performed on the training stand: - Study of asynchronous motor with squirrel-cage rotor - Determination of the moment of inertia of the electric drive by the method of free run-out - Study of the functions of the frequency converter (FC) - Study of the open loop system "FC-AD" - Study of the closed loop system "FC-AD" - Study of the DC generator of independent excitation - Study of the DC motor of parallel excitation - Determination of the efficiency of the electric drive - Determination of the dynamic properties of the drive
