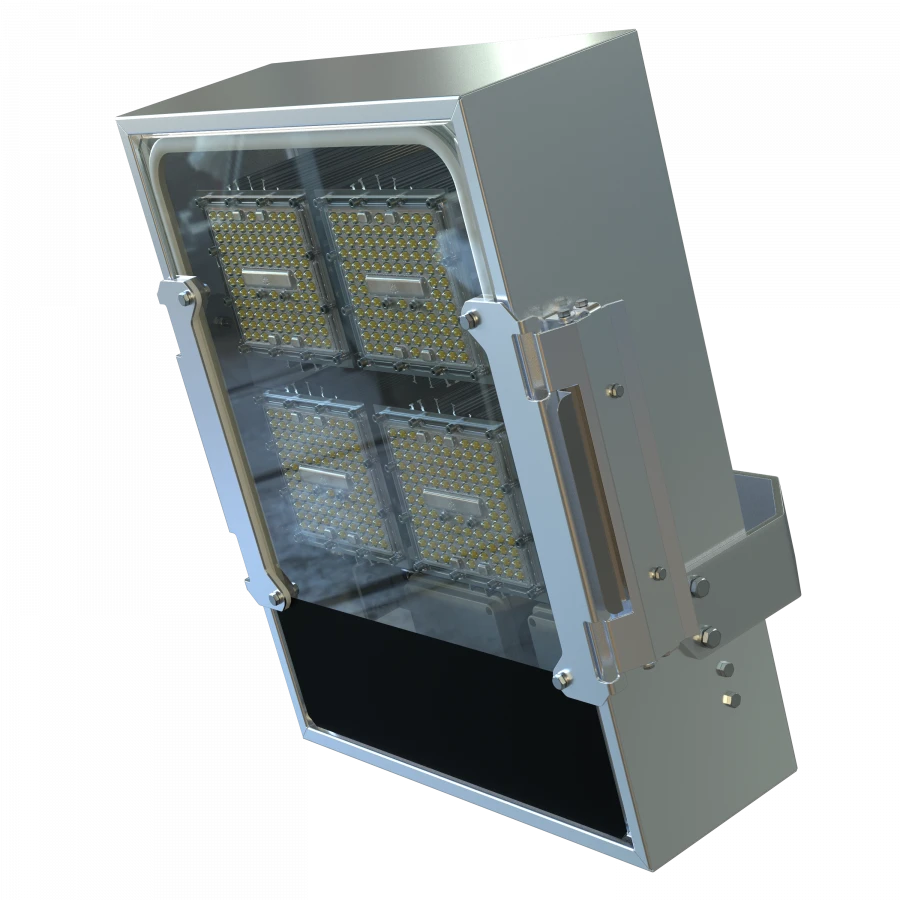

Available for ImportLED Spotlight T 170 for Reliable Tunnel Lighting Solutions
Manufacturer:PROM-SVET LLC
Price:Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Available Models
Description
LED luminaire "Projektor T" are designed to illuminate road, railway and pedestrian tunnels. There are no plastic parts in the housing, so the luminaire is resistant to aggressive environmental impact. Swivelling bracket provides convenient mounting on any surface. Necessary light distribution is achieved by using a lens made of durable borosilicate glass.
Specifications
Length
497...662 mm
Width
259 mm
Height
403...738 mm
Power
170 W
Type of supply current
AC
Upper operating value. Temperatures
SBVVBG °C
Lower operating temperature value
-60 °C
Power supply voltage
176...264 V
Power factor (Pf)
0,98
Protection class against electric current
I
Luminous flux
18700...34000 lm
Housing material
stainless steel
Mounting type
stainless steel bracket
Climatic execution (according to GOST 15150-69)
UHL1
Color rendering index
90;80;70
Double angle half brightness
155×70;135×55;130×30;100×30;120;100;90;85;60;55;38;35;25;18;15;12;10
Color temperature
2700 K
Optical element material
UV-stabilized polycarbonate
Degree of protection against dust and moisture
IP65; IP67
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
