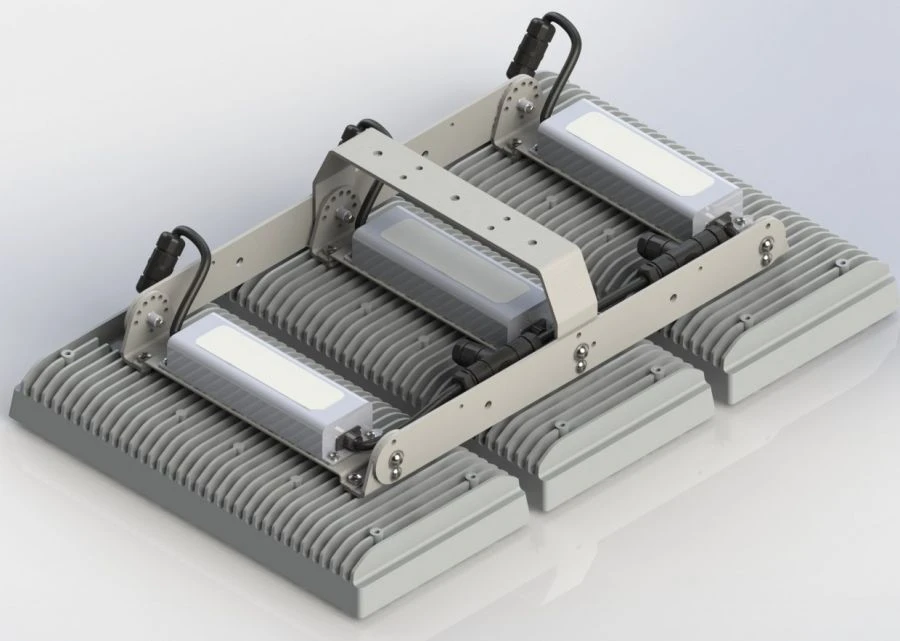

LED Street Light Trios 3 SPP05-375-311 U1 Available for Import

LED Street Light Trios 3 SPP05-375-311 U1 for Outdoor and Industrial Applications

LED Lighting Fixtures
Manufacturer: BRIGHT-ELEC LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

Designed for general lighting of dusty and humid industrial premises, similar agricultural premises, streets, roads, open spaces, sports grounds, indoor lighting of indoor sports and other facilities, warehouses, railway stations and other structures. It is installed on the supporting surface by means of a lyre. It has a device for orientation of the luminaire in space. The body is made of cast aluminium, tempered silicate glass with a mask. The luminaire is equipped with a driver, which allows you to adjust the power within the specified limits.

Specifications

Type of product according to PP RF 616
Lighting fixtures and lighting fittings other than those included in other groupings
Climatic version
?1
Correlated color temperature
5000 K
Width
682 mm
Length
445 mm
Power supply voltage
176...264 V
Upper operating temperature value
40 °C
Luminous flux, lm
63525 lm
Housing material
Aluminum
Type by installation location
On the supporting surface
Power consumption
405...525 W
Height
183 mm
Protection class against electric current
1
Color rendering index (Ra)
80
Degree of protection (IP)
66
Weight
22.5 kg
Operating temperature conditions
-45...40 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
