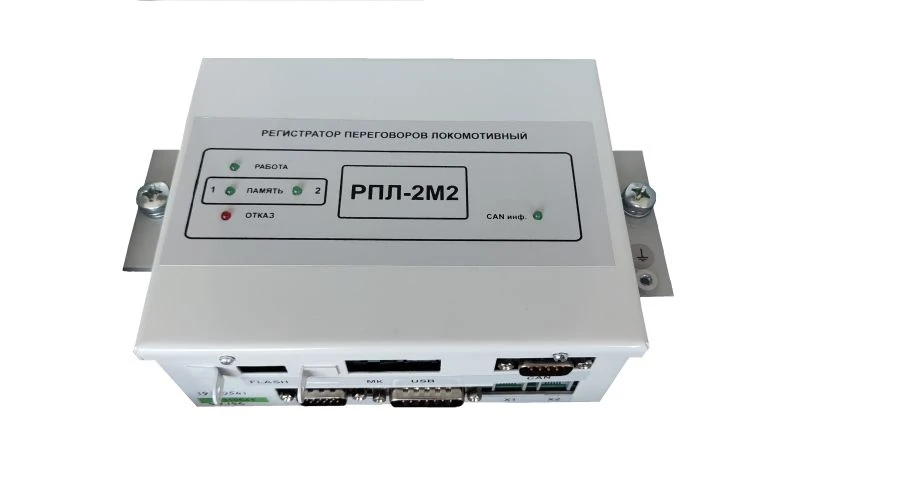

Locomotive Voice Recorder RPL-2M2 for Efficient Communication Monitoring

Audio Recording Devices

Manufacturer: LLC "NPP "POLYUS"

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The locomotive negotiation recorder RPL-2M2 (hereinafter referred to as RPL) is designed to record negotiations between the locomotive crew and the dispatcher via radio communication channels, to record fulfilment of negotiation regulations between the driver and the assistant driver at train departure and on the move. RPL records contain information on the home depot code and locomotive's on-board number, as well as the factory number of the RPL. When connecting RPL-2M2 to KLUB-U via Gateway-CAN, the record is made with reference to track ordinate, time, locomotive traffic light status, actual and permissible speed. Track ordinate, locomotive traffic light status, actual and permissible speed, pressure in the brake line are recorded by the RPL simultaneously with the recording of negotiations.

Specifications

Number of recording channels

3 pcs

Pairing with locomotive radio stations RV1M, RV1M2, RV1.1M, RVS-1, RV-1MC, RV-1.2MK, 42RTM, RLSM-10

availability

Possibility of connection to CLUB-U with synchronisation of the recorder clock with CLUB-U clock and linking records to locomoti

availability

Possibility of linking records to traffic light indication and position of reverser handle / force when interfacing with ALSN; -

availability

Registration of negotiations in the locomotive cab when approaching the forbidden signal of the traffic light and proceeding to

availability

Recording of conversations in the locomotive cab when travelling at a speed exceeding the permissible speed and exceeding 120 km

availability

Possibility to duplicate the recorded information on removable USB FLASH memory

availability

Possibility to copy recorded information to removable USB FLASH memory

availability

Possibility to read information via USB interface

availability

Possibility of remote access via USB interface via network.

availability

Registration of date and time of switching the recorder on and off

availability

Registration of date and time of installation and removal of removable USB FLASH memory

availability

Registration of date and time of disconnection and connection of microphone

availability

Registration of date and time of disconnection and connection of the CAN cable or the BDS unit or CLUB-U.

availability

Registration of date and time of disconnection and connection of ALSN

availability

Recording of negotiations via radio channel with fixation of date, time and range of negotiations

availability

Automatic erasing of old records in case of storage overflow

availability

Storage of recorded data, days, at least

Electronic control of threshold for recording on each channel

availability

Automatic search by date, time and communication channel

availability

Protection against unauthorized access

availability

Round-the-clock operation of RPL-2M2 in the mode of negotiations registration

availability

Provision of operational control of RPL-2M2 status and modes of operation

availability

Visual inspection of recorder serviceability/failure

availability

Frequency range of recorded input signals

300...3400

Input signal level range

0.02...2 V

Power supply from on-board source voltage

SBVVBG V

Power consumption, max.

5 W

Weight (with casing), max.

2 kg

Overall dimensions of RPL in protective casing, mm, not more

195x200x71

Stability of internal clock, sec./day, not more

0,1

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
