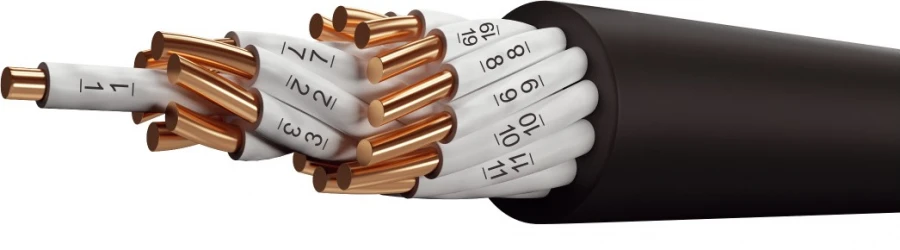

Low-Flammability Control Cables KVVGzng(A) for Safe Electrical Applications

1. Conducting core - single-wire round, 1 class according to GOST 22483 from soft copper (nominal cross-section from 0,75 to 6,00 mm2) wire.
2. insulation of conductors is made of polyvinylchloride plasticate.
3. Core - insulated cable cores twisted by twisting.
4. Separating layer (sheath) - made of polyvinylchloride plastic of reduced flammability with filling of gaps between cores.
5. Sheath - of polyvinylchloride plasticate of reduced flammability.

Cables are designed for transmission and distribution of electrical energy and electrical signals in stationary electrical installations requiring cable sealing at entry, at alternating voltage up to 660 V with frequency up to 100 Hz or direct voltage up to 1000 V.
