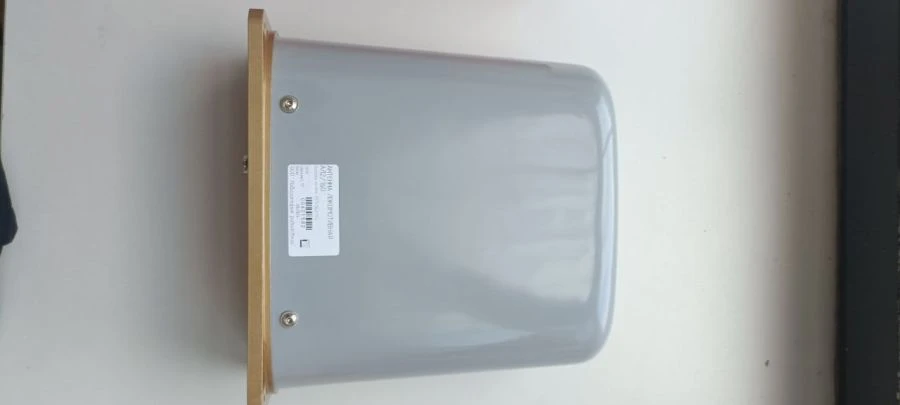

Low-Profile Locomotive Antenna AL2/160 Available for Import

Low-Profile Locomotive Antenna AL2/160 for Efficient Signal Reception

Antenna Equipment & Parts
Manufacturer: Radio Communication Laboratory LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

Antenna locomotive AL2/160 low-profile CD ALVR.464641.013 is manufactured in accordance with the requirements of technical specifications 65 7700 5-001-62837180-11 TU. It is intended for operation as a part of locomotive radio stations of railway radio communication and radio facilities of railway traffic safety systems in the metre wave range.

Specifications

Polarization
Vertical
Weight
3.05 kg
Operating wind speed
432
Connector
N-type receptacle
Equipment
Antenna, passport, packaging
Antenna gain
At least 0 dB with respect to the quarter-wave radiator in the operating frequency band.
Maximum power
200 W
Dimensions
(WxDxW) 255x253x131 mm
Degree of protection in operating position
IP66 according to GOST 14254-2015
Operating frequency range
151.7...156
VSWR
Not more than 1.5
Operating conditions
The antenna is designed for operation on all mobile objects of railway transportation in train radio communication networks in the following conditions: - ambient temperature from minus 50 C to plus 60 C; - relative humidity 93 % at temperature plus 2
Wave impedance
SBVVBG ohm
Horizontal directional pattern
Close to circular with deviation not more than 3 dB

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
