Magnetic Compass UKPM-M3 for Continuous Course Measurement Available for Import

Magnetic Compass UKPM-M3 for Continuous Course Measurement on Vessels

Directional Compasses
Manufacturer: KIPZ OJSC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Available Models

Compass UKPM-M1

Description

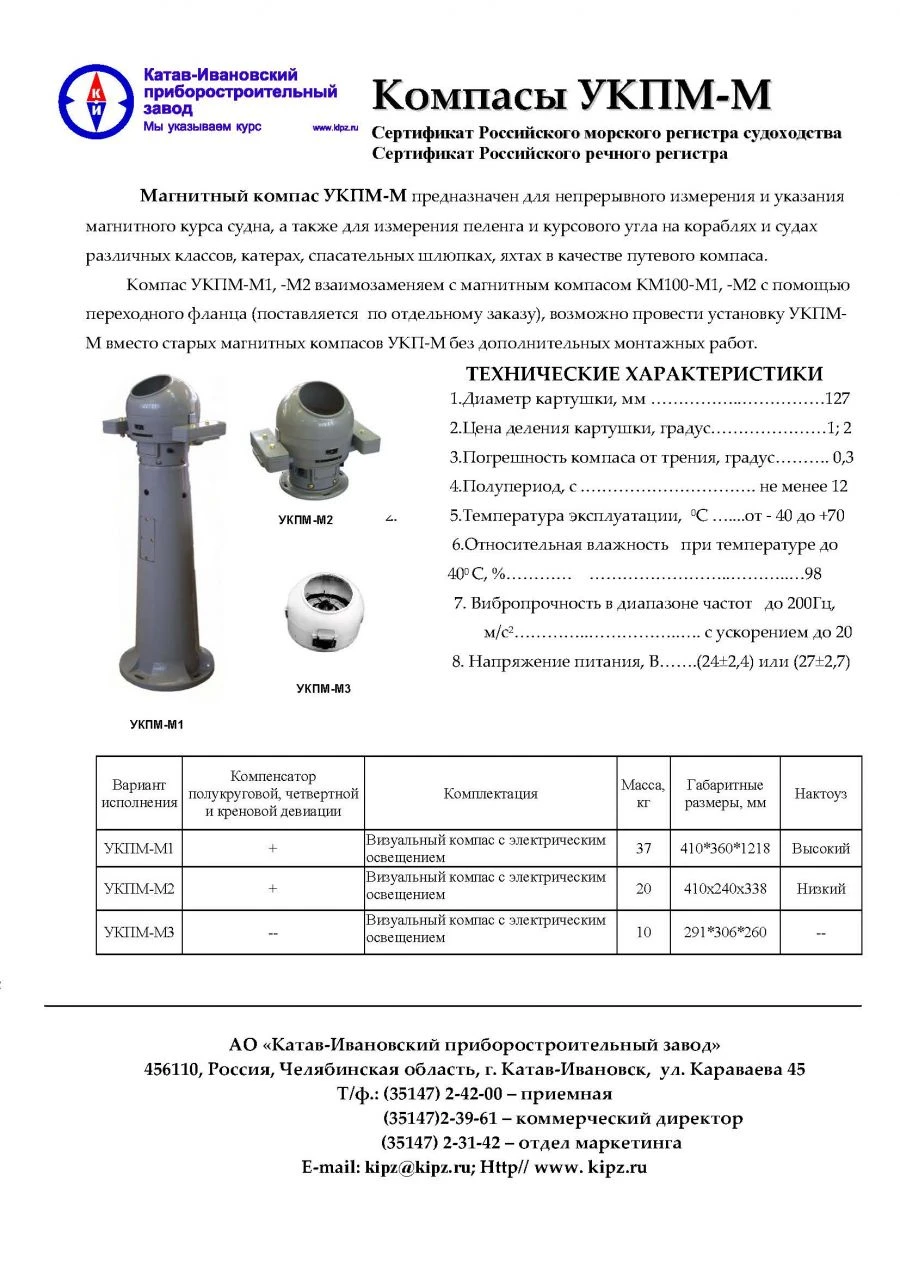

Magnetic compass UKPM-M3 MMMM.462512.005 is designed for continuous measurement and indication of the magnetic heading of the vessel, as well as for measuring bearing and heading angle on ships and vessels of different classes, boats, lifeboats, yachts as the main and travelling compass. The dinghy compass UKPM-M3 differs from other compasses of UKPM-M series by the presence of a cartouche with a larger division - 2 degrees. Illumination - from the on-board network 12 /24 V. It has a closed case, designed for carrying to the place of application.

Specifications

Dividing value
1
Cartridge diameter
127 mm
Weight
10 kg
Equipment
Compact single-scale analogue repeaters (division price 5 degrees) and direction finding repeaters - for direction finding. The repeaters are supplied in versions "on a bracket" and "for mounting in a console". They can be installed on overbo
Compass setting objects
light lifeboats, sailing yachts
Place of installation
Portable, on backboard
Nutrition
24 V
Equipment
Complete with repeaters transmitting compass readings via RS232, RS422 interfaces (NMEA 0183, IEC 1162-1 protocol). Repeaters can be digital (indication up to 0.1 deg), analogue (two-scale, with a division value of 0.1 deg).
Type
magnetic compass
