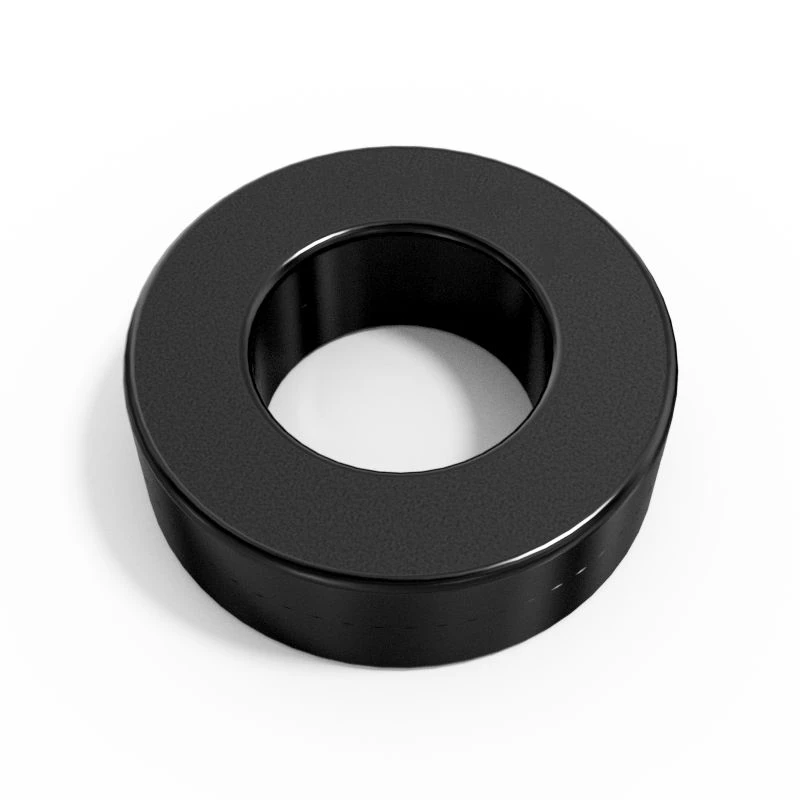

Magnetic Cores MNN for Electronic Circuits

Available for Import

MNN Magnetic Cores for Electronic Circuits and Applications

Specialised Electronic Parts

Manufacturer: PJSC "MSTATOR"

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Magnetocouplers MN CBM magnetoconductors

Description

Magnetoprovods MNN are intended for use as magnetic system of circuit elements of REA: transformers, chokes, filters, circuits, memory devices, etc. The area of operating frequencies up to 3 MHz. Quality category "VP".

Specifications

Size range

10-6,8-4,5 to 18-12-4,5

Coercive force (100 kHz, 80 A/m), not more than A/m

Built-in memory card slot, support microSD/SDHC/SDXC card (up to 256GB); manual recording/alarm recording

Operating temperature range

-60...125 °C

Dual magnetic flux (100 kHz, 80 A/m), ± 13%

9.90 to 25.20 (×10^-6)

Rectangularity factor (100 kHz, 80 A/m), not less than

97 %
