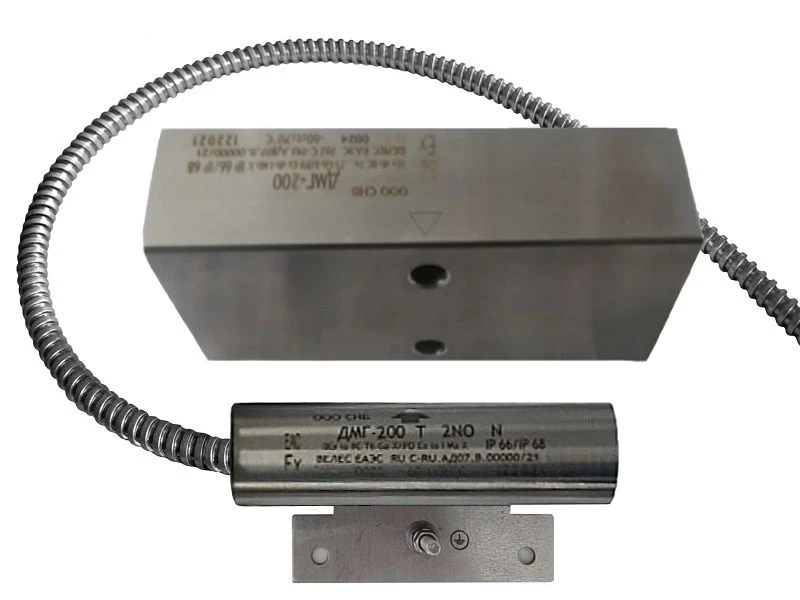

Magnetic Reed Sensor DMG-200 F for Accurate Position Control

Magnetic reed sensor DMG-200 F is designed to monitor the position of parts of structures and mechanisms, structural elements of buildings for opening or displacement, made of magnetic (steel and alloys) or non-magnetic materials (wood, plastic, aluminium) with the subsequent output of a signal. The sensor can be used in underground mine workings and their above-ground structures hazardous by mine gas and/or combustible dust. The sensors are manufactured with two reed switches or with one reed switch. The reed switch unit of the sensor DMG-200 F is made with frontal working area. Operating temperature is from minus 60°C to plus 70°C. Degree of protection of the shell according to GOST 14254-2015IP66/IP68.
