Main Grounding Busbar GZSHL.06-430.210.5M8-MAvailable for Import

Main Grounding Busbar GZSHL.06-430 for Electrical Grounding Systems

Electrical Circuit Devices
Manufacturer:ELMASHPOM LLC
Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

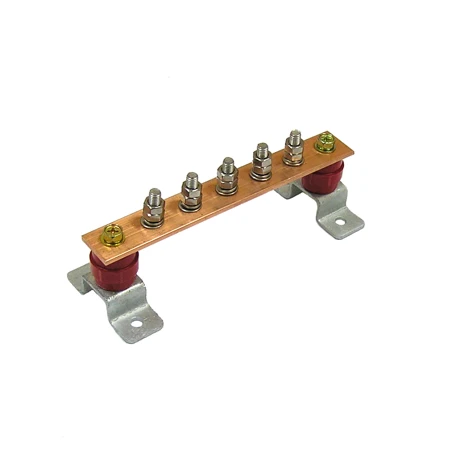

Main earthing busbar, copper 210 x 30 x 4 mm with 5 M8 pins on insulators 30 mm high "on feet". Busbar, which is part of the earthing device of the electrical installation up to 1 kV and is designed to connect several conductors for the purpose of earthing and equipotential bonding

Specifications

Size
75-30-210 mm
Weight
0.55 kg
Material
Tire material - copper
Material
insulator material - polymer
Material
Support material ("feet") - hot-dip galvanized steel according to GOST 9.307-2021
Type
main ground busbar
Save Your Time

Share your requirements for a quick response!

Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, RussiaCIF Available to major ports worldwideEXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C)Wire Transfer (T/T)Escrow Services
