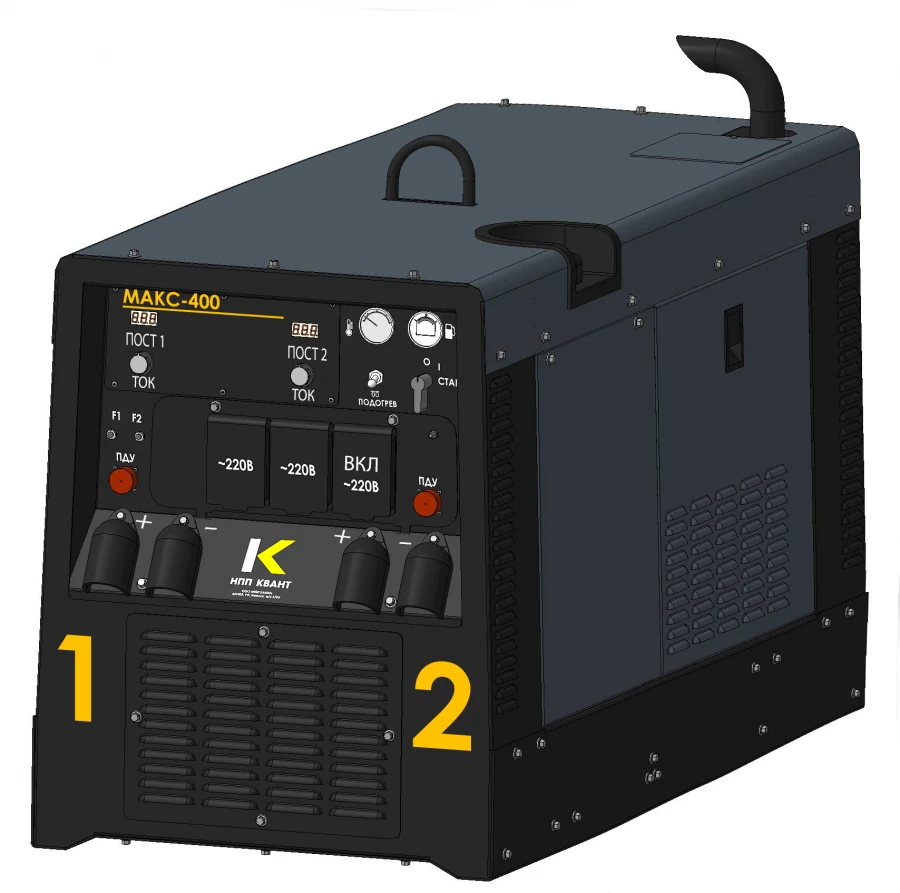

MAX-400 Welding Machine for Manual and Semi-Automatic Welding

Available for Import

MAX-400 Welding Machine for Autonomous Dual-Post Metal Welding

Electric Welding Machines

Manufacturer: Kvant LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Designed for use as an autonomous two-post welding complex for manual and semi-automatic arc welding, cutting and cladding of metal with direct current with a range of adjustment of each post 30-450 A.It is produced in climatic version "U" category of placement "1" according to GOST 15150 and is designed to work outdoors in field conditions. Provides nominal parameters when working at an altitude of not more than 1000 m above sea level at ambient air temperature from minus 45C to plus 40C and relative humidity of not more than 80% at 15 C.

Specifications

Type of product according to PP RF 616

Arc welding equipment

Power

20 kW

Rated welding current

450 A

Operating voltage

38 V

Minimum welding current

30 A

Service life

5 year

EFFICIENCY

80 %

Insulation class

Protection class

IP23

Switching modes

Armoured glass

Magnetic current compensation mode

Armoured glass

Drive motor

Armoured glass

Converter (2 posts)

Armoured glass

Weight

550 kg

Dimensions

1430x670x940

Mark

MAX-400

Type

welding unit

Load Duration (LL)

100 %

Type of welding voltage regulation

smooth

Contact welding

Manual arc welding

Armoured glass

argon-arc welding

Armoured glass

Semi-automatic welding

Armoured glass

Automatic welding

Armoured glass

Type of welding current

permanent

Maximum welding current

450 A

No-load voltage

Flat grinder, Specialised grinder V

Length

1430 mm

Operating modes (continuous/pulse)

continuous

Maximum power consumption, kW

Width

670 mm

Height

940 mm

Equipment

Welding machine complete - 1 piece, machine passport - 1 copy, motor passport - 1 copy, motor operation manual - 1 copy.

Welding current adjustment range

30...450 A

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
