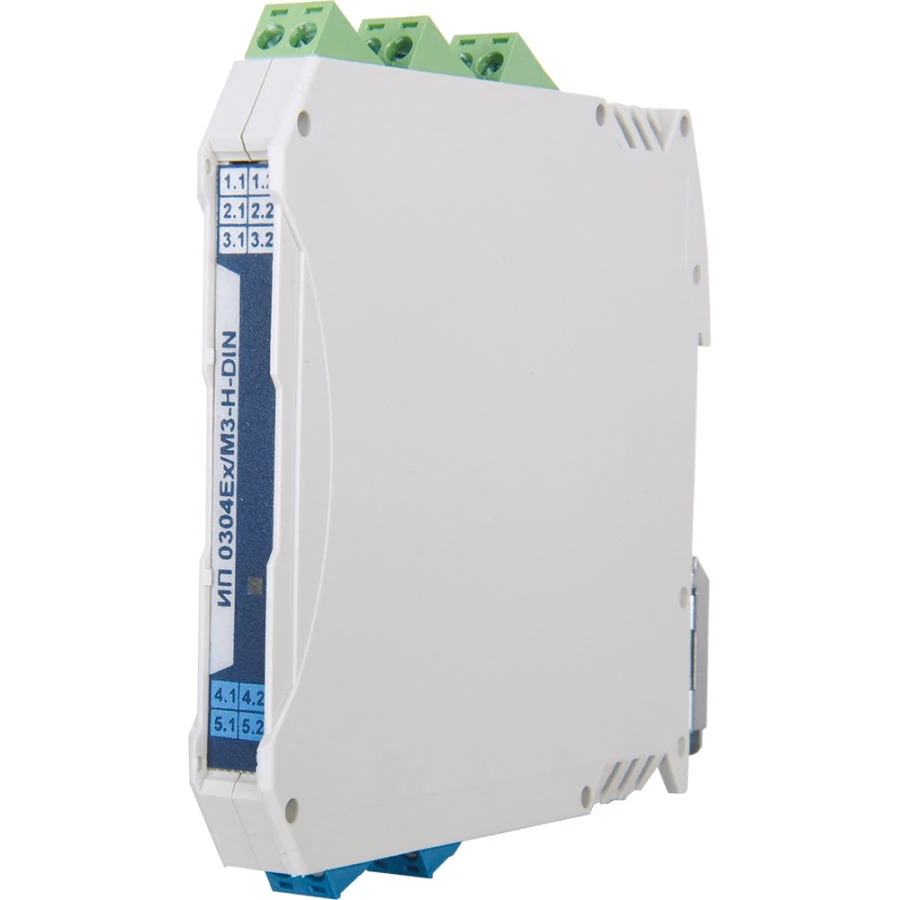

Measurement Converters IP 0304/M3-N-DIN for Accurate Signal Transformation

Digital Signal Converters

Manufacturer: ELEMER LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The measuring converters ?? 0304/M3-N-DIN are designed for measurement and conversion of signals coming from resistance thermocouples (TC), platinum resistance thermocouples (TSP) with individual static characteristics (ISH), thermoelectric converters (TP), potentiometric devices of direct current in a unified output signal of direct current from 4 to 20 mA or from 4 to 20 mA with superimposed on it digital signal via HART protocol. The UUTs are used in various technological processes in industry and power engineering.

Connection schemes: 2-, 3-, 4-wire. It is possible to work with a unified voltage signal -100...100 mV and with potentiometric sensor signals (up to 10 kOhm). Installation of IP 0304/M3-N-DIN is carried out on a DIN-rail.

Specifications

Vibration resistance according to GOST R 52931-2008

Group N3

Explosion protection

[Ex ia Ga] IIA X, [Ex ia Ga] IIB X, [Ex ia Ga] IIC X

Type of digital protocol

HART v.7 (4...20 mA)

Mounting of the measuring transducer (MT)

DIN rail

Programmable error current

"Low" (3.7...3.8 mA) or "High" (20...23 mA)

Warranty period

24 months (from commissioning) or 36 months (from shipment)

Inspection interval

Up to 4 years old

Electromagnetic compatibility (EMC)

IIIA

Overall dimensions

Width 12.6 mm, height 105 mm, depth 114 mm

Power supply voltage

=10...42 V (without HART)

Degree of protection against dust and moisture

IP20

Output signal, mA

4...20

Climatic version

Performance group according to GOST R 52931-2008: C2 (from minus 60 to plus 80), C3 (from minus 25 to plus 70).

Type (NCC) of primary converter

CWD (ISX), 50M, 100M, 50P, 100P, Pt100, Pt500, Pt1000, 100H, 1000H, TJK(J), TMK (T), TKKn (E), TKK(L), TCA(K), TPP(S), TPP (S), TPP(B), TNN(N), TWR (A-1), -100 mV....+100 mV, -1000 mV...+1000 mV, 400 Ohm, 4000 Ohm, 10 kOhm

Compliance with GOST R IEC 61508-2-2012 "Functional safety of electrical, electronic, programmable electronic systems".

Safety Integrity Level 2 (SIL 2)

TC connection diagrams

2-, 3-, 4-wire

Minimum measured temperature

From minus 210 C

Maximum measured temperature

Up to +1820 C

Possibility of simultaneous operation with two TCs using 2-wire scheme or with two TPs using built-in CHS

Armoured glass

Accuracy class

Up to 0.05 C (depending on the type of NCS)

Execution

General industrial, Explosion-proof "intrinsically safe circuit i"
