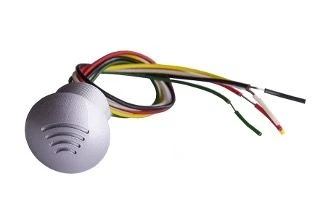

Mifare RFID Reader with Flush Mount, Model CP-Z-2 (MF-I)

Available for Import

Mifare RFID Reader for Access Control Systems - Model CP-Z-2 (MF-I)

Electrical Interface Devices

Manufacturer: OTK LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

It is used in access control and management systems (ACS) to transmit to the controller code brought to the reader proximity key fob proximity standard Mifare protocols iButton or Weigand-26-50. The housing of the product is made of mechanically strong and fireproof material and repeats the shape of the contactor for DALLAS keys. This makes it possible to use the reader in ACS or stand-alone instead of traditional contactors for DALLAS keys without any changes in design or difficulties in installation. A distinctive feature of the reader is the support of technology "IronLogic - Protected", which provides reliable protection of cards from cloning. To realise the secure reading technology, in addition to the Matrix-II reader (mod. MF-I) will require a reader Z-2 USB MF (with special firmware), a card Object Iron Logic and blank cards (fobs) standard Mifare to create a pass card.

Specifications

Operating frequency

13.56

Type of identifiers used

Mifare

Reading range

5...20 mm

Output interface

Ibutton (Dallas Touch Memory), Wiegand 26/34/42/50

Maximum line length from reader to controller: Dallas Touch Memory

15 m

Maximum line length from reader to controller: Wiegand

100 m

Light indication

Got it

External control of LED and sound

Got it

DC supply voltage

B1/B8 2100/900 MHz V

Maximum current consumption

200 mA

Dimensions

25x23 mm

Housing material

Polycarbonate

Operating temperature

-40...50 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
