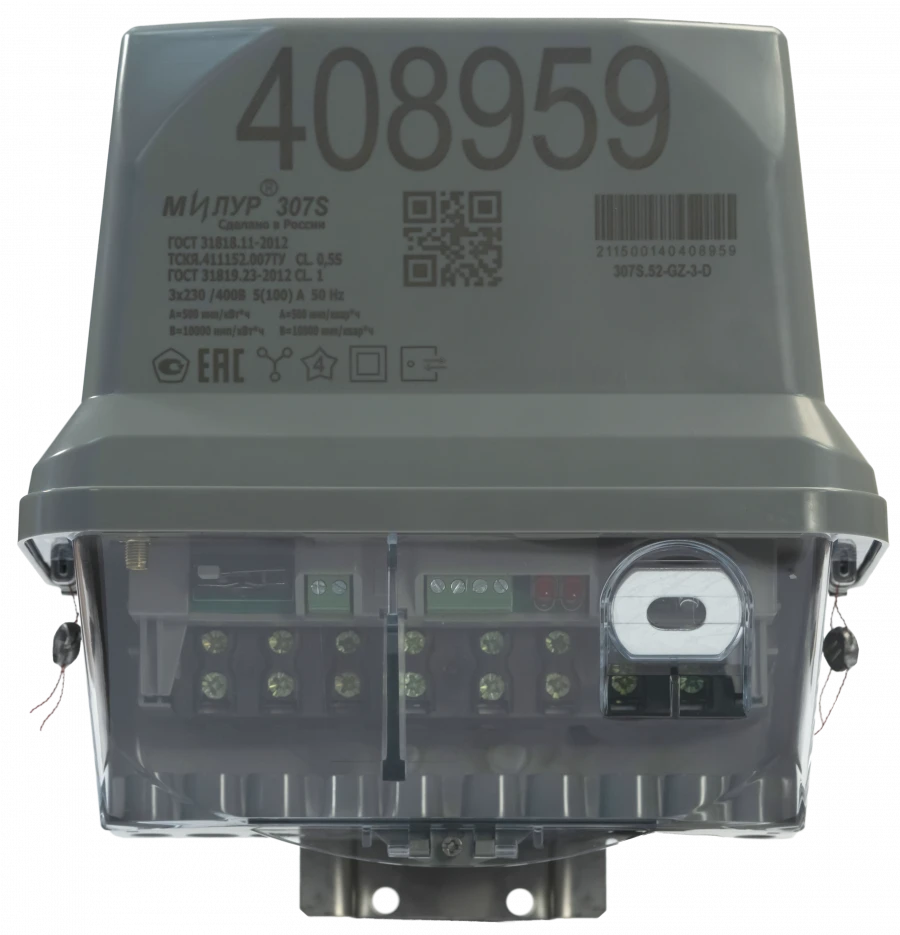

MILUR 307S.52-GZ-3-D Static Three-Phase Energy Meter for Accurate Energy Monitoring

Electricity Meters

Manufacturer: MILUR IS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Milur 307 static three-phase electricity meter with SPODES protocol support in SPLIT case for outdoor installation with load control relay is designed for metering active and reactive electricity consumption in two-wire AC network with frequency 50 Hz.

The metering device can operate both autonomously and as part of automated metering systems, recording electricity consumption and storing data in non-volatile memory.

Data exchange with automated accounting systems or computer is carried out via GSM communication interface.

The measuring unit of the outdoor metering device transmits information about the consumed volume of electricity to the measuring unit of the consumer indication "Milur T" via RF 433 MHz radio interface according to Mi307 protocol.

The metering device is equipped with an opto-port.

Specifications

Nominal voltage

230...400 V

Rated current

5 A

Accuracy class

0,5S/1

Mounting method

To the screws

Maximum current

100 A

Maximum operating temperature

70 °C

Minimum operating temperature

-50 °C

Type of metered energy

Reactive, Active

Type of readout device

Electronic

Number of phases

Type

Multi-tariff

Type of product according to PP RF 616

Other tools and instruments for measurement, inspection and testing

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
