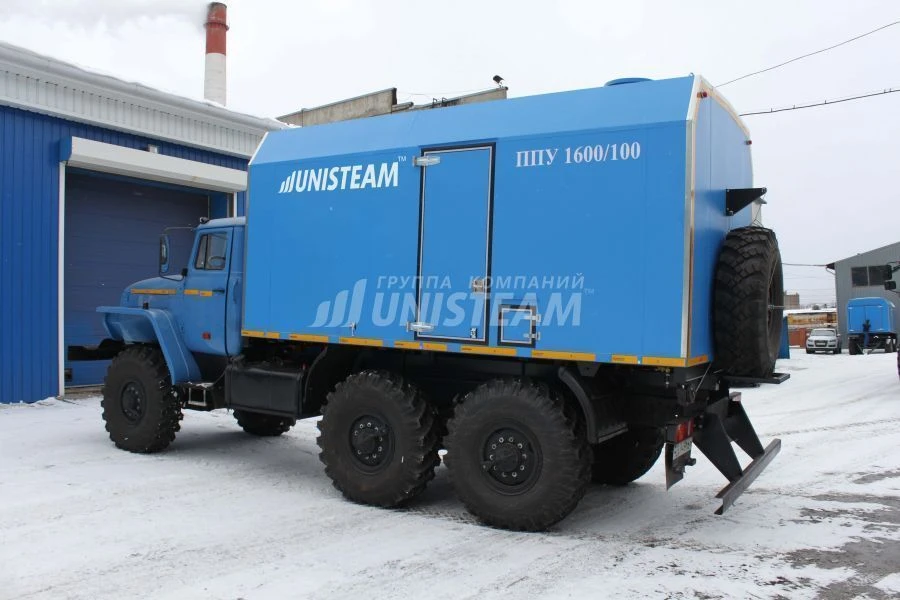

Mobile Steam Generator Unit Type 7098V4 on Ural 55571-80 Chassis for Optimal Steam Production

Special Purpose Vehicles

Manufacturer: UNISTIM STEAM EQUIPMENT PLANT LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Mobile steam generating unit type 7098V1, chassis Ural 4320-80, 4320-82 Mobile steam generating unit type 7098T4, chassis Ural 55571-60, 55571-62, 55571-70, 55571-72, 55571-74 Mobile steam generating unit type 7098U9, chassis Ural 43206-71 Mobile steam generating unit type 7098U4, chassis Ural 55571-70, 55571-72, 55571-74 Mobile steam generating unit type 7098T1, chassis Ural 4320-60, 4320-62, 4320-70, 4320-72, 4320-74

Description

Mobile steam generating unit on a truck chassis is designed to produce wet saturated steam of secondary boiling with operating parameters:
Capacity 1600-2500 kg/h.
Steam pressure 0,78-15,69 MPa
Fuel: diesel/gas
Application area of the plant:
- removal by saturated steam of hydratoparaffin deposits in pipelines;
- heating and steam cleaning of gas condensate rectification columns;
- dewaxing of pipe fittings in bottom-hole zones of wells;
- intensification of oil production by injecting steam into oil reservoirs;
- cleaning of internal surfaces of tanks and pipelines from bitumen, fuel oil, naphtha, paraffin and other residual chemical products;
- thermal treatment of mining operations of coal mines in winter time;
- drying of timber;
- technological processes of food and agricultural industry;
- steaming of reinforced concrete products;
- heating of bulk goods (crushed stone sand) in winter time.

Specifications

Type of product according to PP RF 616

Special purpose motor vehicles other, not included in other groupings

Engine type

diesel

Number of axles

3 pcs

Number of brake suspensions

6 pcs

Number of drive hangers

6 pcs

Payload

300 t

Loading platform width

2500 mm

Loading platform length

5400 m

Climatic version

y, category 1
