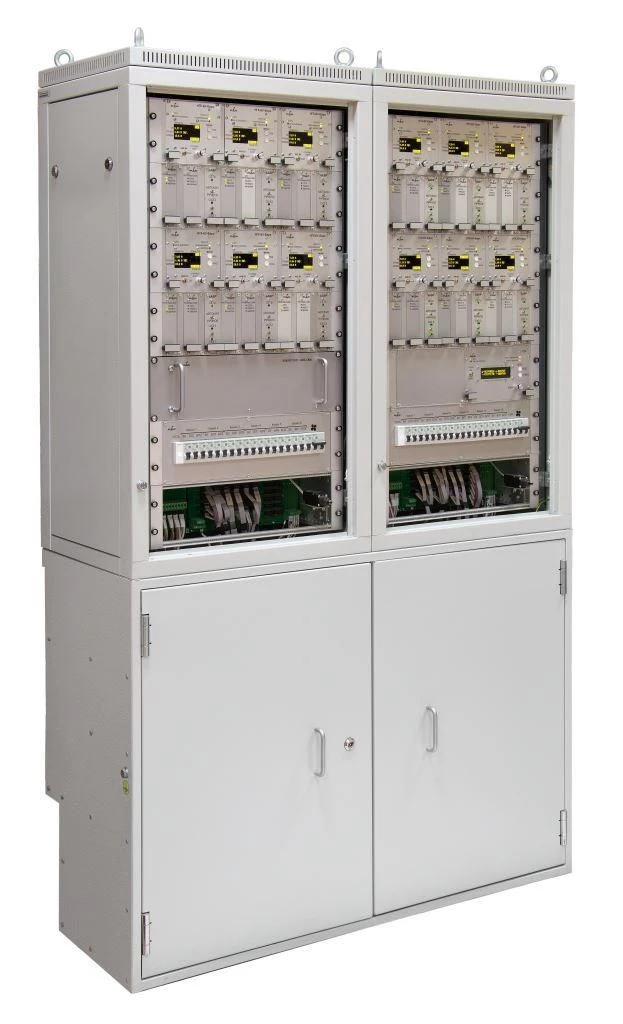

Modular Multi-Channel Equipment Complex KMO NGK-IPKZ-Euro for Electrochemical Protection

The complex of modular EHS equipment NGK-IPKZ-Euro is based on pulse converters operating on separate loads and is designed for electrochemical protection of external surfaces of underground steel structures from soil corrosion, collection and processing of information on corrosion processes and corrosion protection and transmission of this information via digital interface (RS-485/Fiber Ortis (FOCL)/GSM) to telemechanics systems. The complex of modular equipment supports modes of telemetering (TI), tele-signalling (TS), telecontrol (TC) and tele-regulation (TR). The complex meets the requirements of GOST R 51164-98, VTT to modular cathodic protection stations.

and STO Gazprom 9.4-023-2013. The complex of modular multi-channel equipment allows monitoring of corrosion processes at the point of drainage (for each channel). To increase the number of corrosion monitoring points (up to 32) it is necessary to use the subsystem NGK-SKM.

It is possible to increase the number of monitoring points...
