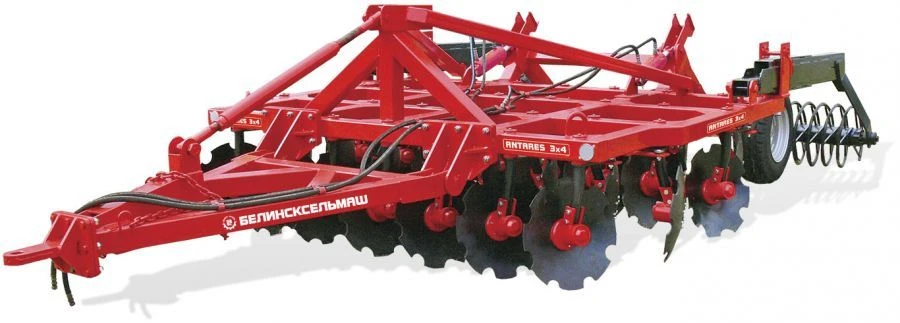

Modular Trailed Disc Harrow for Efficient Soil Preparation - BDM-3x4

Disc Harrows

Manufacturer:BELINSKSELMASH OJSC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The trailed modular disc harrow is designed for resource-saving pre-sowing cultivation of soil for sowing grain, industrial and forage crops, weed killing and shredding of crop residues after harvesting crops, as well as for shredding, levelling and compaction of soil after discing.

Specifications

Type of product according to PP RF 616

Disc harrows

Capacity per hour

Length

6450 mm

Width

3460 mm

Height

1530 mm

Harrow type

Modular trailed disk harrow

Number of implement rows

4 pcs

Working width

3 m

Weight

2830 kg

Distance between rows

700 mm

Diameter of working elements

560 mm

Distance between blades

200 mm

Overall dimensions in working position

6450x3460x1530 mm

Structural weight

2830 kg

Pulling power class (not less than)

150 hp

Depth of treatment

80 mm to 160 mm

Angle of attack of the disks

0° - 30°

Number of rows

4 pcs

Unit type

Trailed

Number of cutting units

30 pcs

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
