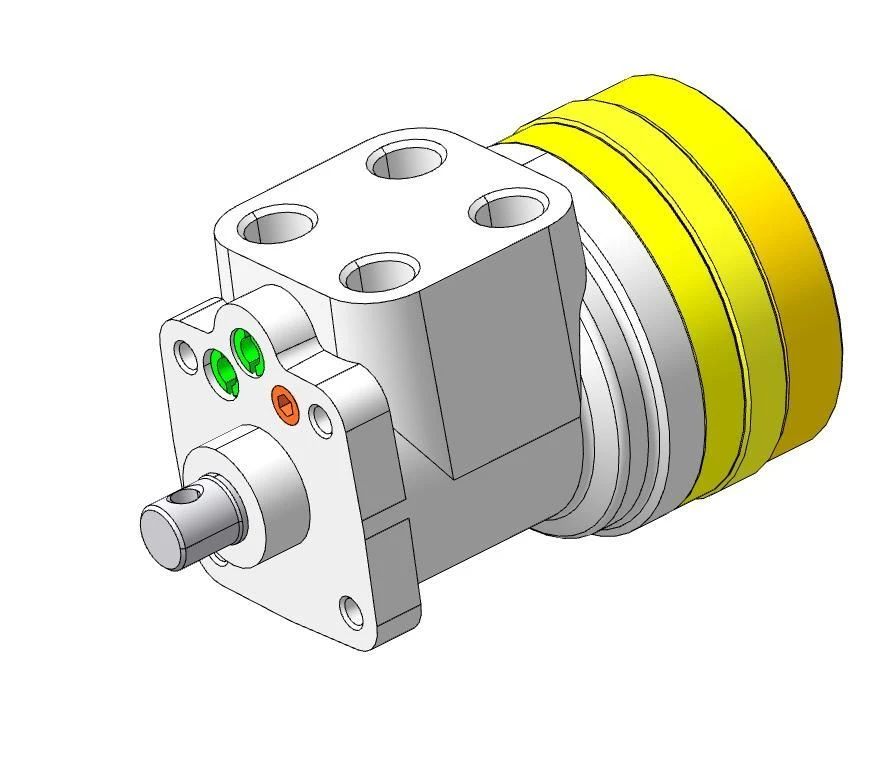

Monoblock Dosing Pump NDM 80-U250-8(16) for Liquid Control Applications

The monobloc metering pump is designed to change the direction and value of the working fluid flow rate from the feed pump to the executive cylinder of wheel turning and to supply the working fluid from the drain hydraulic line to the cylinder when the feed pump of self-propelled machines and tractors is not working, the maximum speed of which does not exceed 50km/h. The nominal working volume is 80 cm cubic, the adjustment pressure of the safety valve is 8(16)MPa, the adjustment pressure of the anti-shock valve is 12...17(20...22) MPa
