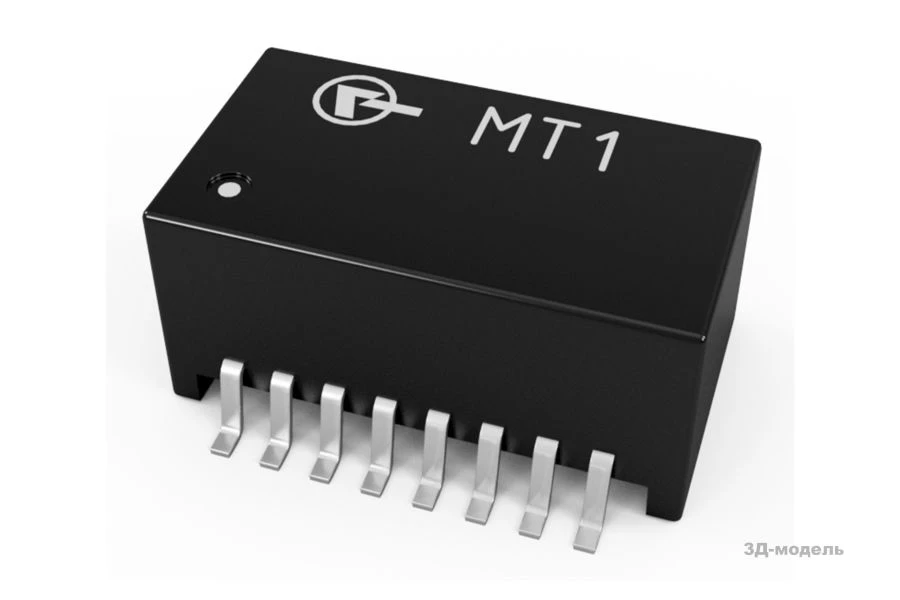

MT1 Transformer Modules for Data Transmission

Available for Import

MT1 Transformer Modules for Continuous Signal Transmission in Data Systems

Low-Power Electrical Transformers

Manufacturer:PJSC "MSTATOR"

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Modules transformer MT1 are designed for transmission of continuous signals in the interface channels of data and information transmission systems in accordance with IEEE 802.3 configuration 10/100Base-TX. Quality category "OTK".

Specifications

Electrical strength of insulation between input and output windings: AC test voltage (time of exposure)

1650 ?

Insulation resistance between input and output windings

(voltage 100V), not less than 500 (10^6) ohms

Scattering inductance of windings

(100 kHz,0.1 V)0.3(10^-6) Gn

DC resistance of windings

Not more than 1.3 ohms

Signal operating attenuation

(1-100MHz), not more than -1 dB

In-phase noise suppression

(5 MHz), not less than -50 dB

In-phase suppression

(100 MHz), not less than -27.9 dB

Operating temperature range

-60...105 °C

Primary inductance

(100 kHz, 0.1 V), at least 440 (10^-6) Gn

Transformer turns ratio

1:1
