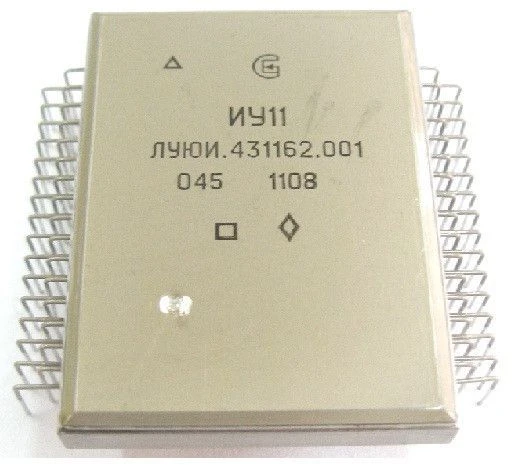

Static multichannel key IU11

The multi-channel key IU11 is a micro-node of power amplifiers with increased special resistance. It is made in the form of a hybrid thin-film micro-node in a sealed metal-glass case and is intended for switching of electric circuits of direct current up to 1 A with voltage from 1 to 45 V and operation as an integrated element of radio-electronic equipment of special purpose. Functional purpose of the key is multiple cyclic switching of DC circuits according to the majoritarian law in accordance with the functioning algorithm. The number of power switched outputs with a maximum switched current of 1 A each is 9. The number of majoritarian elements - 13.
