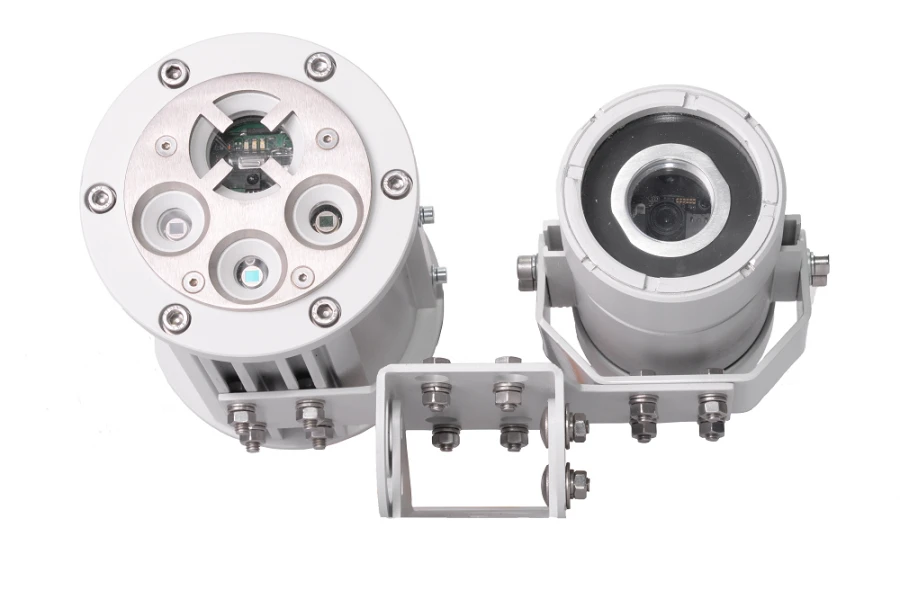

Multi-Range Flame Detector with Video Module Spectron-901-Exd-N-B-HART for Fire Safety

Spectron-901-Exd-N-V-HART with video module is a multi-band fire detector flame. Detection of the flame is made by the presence of electromagnetic radiation in different ranges of the infrared and ultraviolet spectrum. The video module is designed to record alarm events.

The video module is located on the same axis as the flame detector. Photos from the analogue video module are sent to the RS-485 interface located on the IPP switching board. The video module is manufactured in a separate housing and mounted on a common bracket with the PPI.

Power to the video module is supplied from the PPI via an armoured cable. A separate power supply board is installed in the PPI to operate the video module. The video module is without IR illumination and heating.

The detector housing is made of stainless steel and has a degree of protection by the shell (IP66/IP68) against the effects of the external environment.
