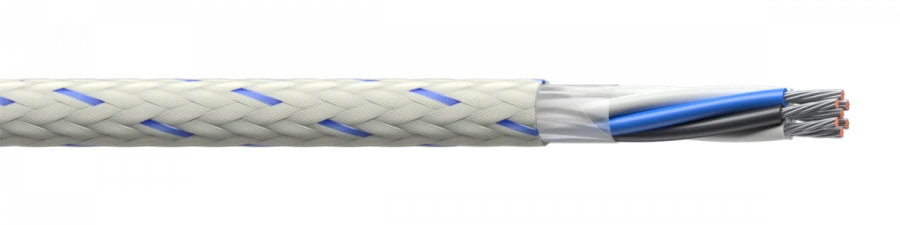

Multi-stranded Insulated Cables KPLM-OS for High Temperature Applications
Manufacturer:
Podolsk Cable OJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Available Models
Description
Cables multicore with polyethylene insulation braided, small-sized are designed for operation at temperatures from minus 60 to +85 °? and voltage up to 250 V AC frequency up to 5000 Hz or 350 V DC. Service life is not less than 15 years at operation in the temperature range from minus 60 to +85 ° C.
Specifications
Core material
tinned copper stranded
Insulation material
polyethylene
Cladding
Capron sheath
Winding
Polyamide film (wrapping with polyamide film and braiding with lavsan threads over single-pair cables of KPLEMU grades is not provided).
Protective cover
braiding of lavsan yarns impregnated with organosilicon varnish
Section
0.12 to 1.50 mm²
Number of cores
4 to 52
Nominal voltage
250 ?
Climatic version
In accordance with GOST 15150-69
Execution
Quality category - OS
