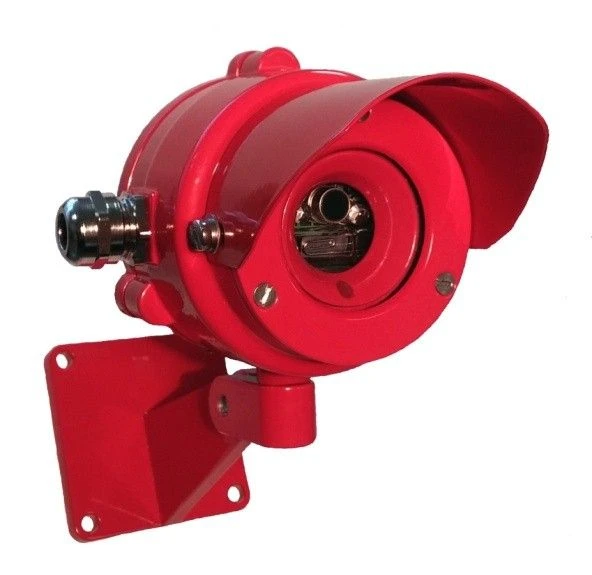

Multi-Wavelength Flame Detector "Nabat IR/UV" for Enhanced Fire Safety

Multiband (IR/UV) flame detector "NABAT IR/UV" has maximum resistance to all types of optical interference. It is intended for use at critical facilities of oil, gas, chemical industry in heavy interference environment. Due to the use of spectral selection method in the IR channel and the presence of an additional UV channel, the detector remains operational and does not lose sensitivity in direct sunlight, backlighting from artificial light sources and in the presence of heated objects in the field of view.

The detector can be connected to most commercially available control panels with conventional or intrinsically safe loops. It provides both two-wire (detector power supply via an alarm loop) and four-wire (separate power supply line) connections. The current consumed in the standby mode does not exceed 350 µA.

Flame detector "NABAT IR/UV" (IP329/330-3-1) in the explosion-proof version is designed to protect objects, in hazardous areas of cl...
