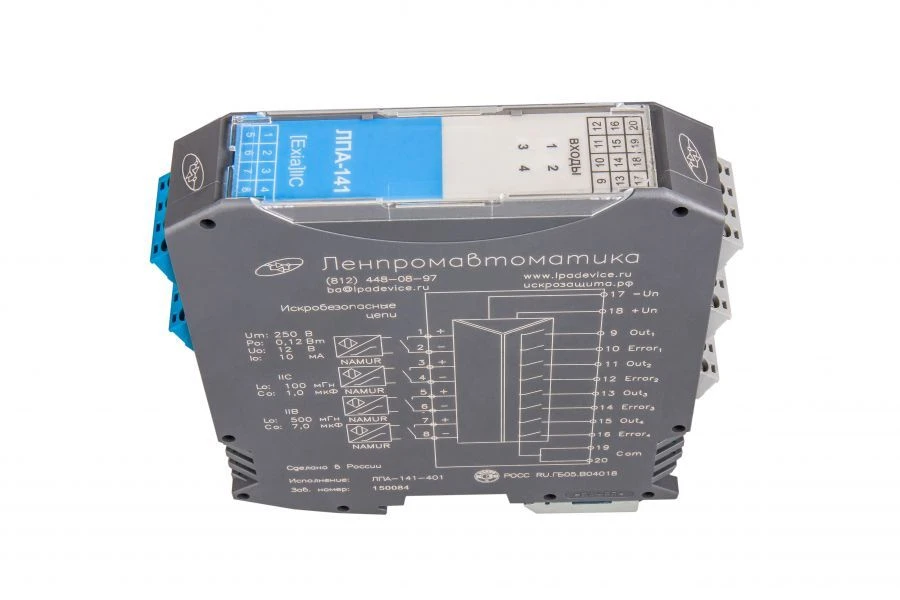

Multichannel Active Intrinsically Safe Barriers LPA-141 for Safe Sensor Applications

Electrical Protection Devices

Manufacturer: LENPROMAVTOMATIKA LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Multichannel active barriers for intrinsic protection of sensors "dry contact" and NAMUR.Intrinsic safety barriers LPA-141 provide reception and conversion of input signals from discrete sensors, discrete sensors with support for circuit monitoring and discrete sensors with an output signal according to the NAMUR standard (EN 60947-5-6), connected via a two-wire communication line.

Specifications

Number of channels

2...4 pcs

Maximum output current, mA

Maximum output voltage

B1/B8 2100/900 MHz V

Barrier supply voltage

18...36 V

Average time to failure of the barrier, not less than

150000

Warranty period of operation from the date of sale

5 year

Average service life of the barrier

B1/B8 2100/900 MHz year

Barrier weight, not more

300 year

Overall dimensions of the barrier, not more

113x110x23 mm
