Available for Import
Multifunctional Combined Machine "Chistik" MKM-1904-22 for Versatile Year-Round Applications
Manufacturer:
LZMKM LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description

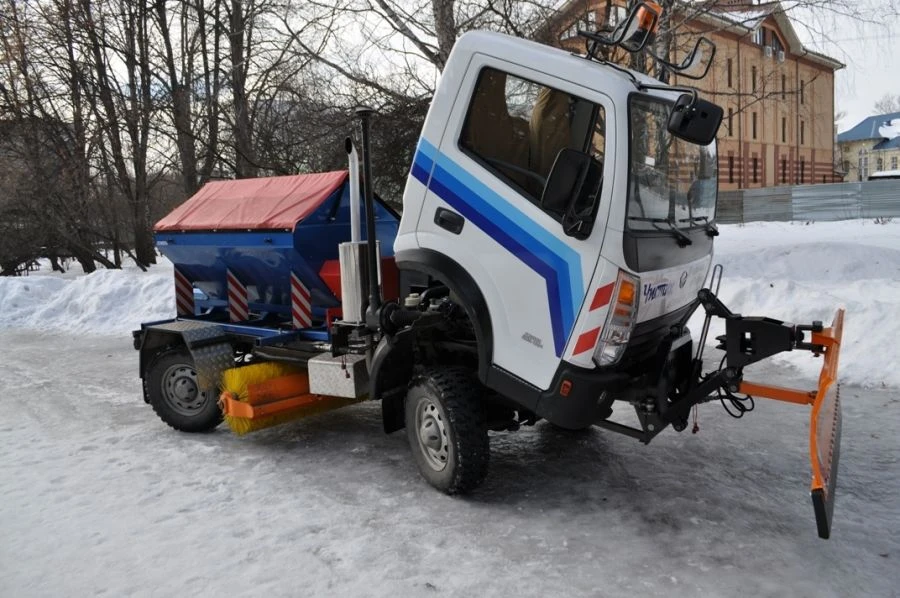

Multifunctional combined 4x4x4 machine of increased manoeuvrability with steerable front and rear wheels, with galvanised, reinforced frame with load capacity of 2,5 t for year-round performance of works on winter and summer maintenance of pavements, bicycle-pedestrian paths, park areas, intra-quarter, intra-house territories with asphalt and tile pavement. Designed specifically for domestic operating conditions and climatic peculiarities of the Russian Federation. The UAZ-3303 chassis is taken as a basis, all main units (engine, frame, suspension, axles, transmission, GUR, etc.) are replaced and modernised, and the construction is designed for round-the-clock operation under severe operating conditions.
Specifications
Base chassis type
Self-propelled machine
Type of product according to PP RF 616
Vehicles for public utilities and road maintenance
Machine type
Combined road machine
Availability of air conditioning system
Armoured glass
Traffic speed transportation speed
SBVVBG
Width of the strip to be cleaned
2000 mm
Emptying height of sweeper
1700 mm
Hopper capacity
1.35
Rated motor power (her)
89 hp
Turning radius
3200 mm
Water tank volume
2000 l
Height
2375 mm
Width
2000 mm
Ground clearance
205 mm
Wheel arrangement
4x4x4
Operating weight
4300 kg
Availability of heater
Armoured glass
Engine type
gasoline
Number of supports
4 pcs
Electric water pump
Armoured glass
Suitable for maintenance of bio-toilets
Armoured glass
Capacity of 1 tank
500 l
Number of containers
3
Method of distribution
Spreading disk
Vibration damper
Armoured glass
Diameter of brush disks
450 mm
Angle of rotation
30
The horizontal rail position can be adjusted in three planes
Armoured glass
Possibility to work with a horizontal rail behind the machine dimensions
Armoured glass
Pump capacity
115
Maximum water pressure
70
High pressure pump drive
Hydraulic
Nozzle for lawn irrigation
Armoured glass
Inertia reel with 15m hose reel
Armoured glass
Ability to flush sewage and domestic heating systems
Armoured glass
High-pressure gun
Armoured glass
Vertical rail
Armoured glass
Angle of rotation
60
Width of horizontal rail
2000 mm
Width of the processed strip
2000...5000 mm
Type of equipment
Equipment for maintenance of bio-toilets
Front plow snowplow - Type
Utility dump
Discharge height of MSW
1.7 m
Compaction efficiency of MSW
3
Hopper capacity for solid waste
4
Machine type
Multi-functional combination machine
Motor power
65 kW
Number of seats in the cabin
3
Payload
2500 kg
Availability of air conditioning
no
Turning radius
3.2 m
Attachment drive
Hydraulic
PTO from the front engine shaft
Armoured glass
Number of hydraulic circuits
2
Hydraulic tank volume
0.12
Number of simultaneous operations
3
GLONASS monitoring system
Armoured glass
Steering
Hydraulic front and rear wheels with metering pump.
Hopper capacity
4
Discharge method
Dump truck, backwards
Material
stainless steel
Maximum hopper height at discharge
4.5 m
Water tank
0.8
Water tank material
stainless steel
Brush for removing snow from the sides
availability
Sprung knives
Armoured glass
Knife width
2 m
Warranty period of operation
NZ-150-14,5
Equipment control panel in the operator's cabin
Armoured glass
The crab move
Armoured glass
Additional headlights
2 pcs
Tachometer
Armoured glass
Manual gas
Armoured glass
Hour meter
Armoured glass
All-round vision system
Armoured glass
Equipment control panel
Armoured glass
Audio system
Armoured glass
Transmission type
absent
Width of the strip to be cleaned
1600...1800 mm
Floating mode
Armoured glass
Diameter of brush disks
550 mm
Wetting system
Armoured glass
Ice axe mounting option
Armoured glass
Type of installation
Front mounting plate
Width of the processed strip
2000 mm
Height of snow pile
500 mm
Maximum performance
Flat grinder, Specialised grinder
Width of the processed strip
1600...1800 mm
Number of working positions
3
Width of the processed strip
1800...2000 mm
Mounting method
Universal attachment
Number of working positions
7
Number of working blade sections
2
Hopper material
Ferrous metal
Hopper capacity
1.5
Sprinkling working area width
0.5...15 m
Number of tedders
2
Adjustment of spreading width and spreading density
On the equipment
Hopper emptying sensor
Armoured glass
Sand supply
screw
Multilift - Sprinkle height adjustment
Armoured glass
Capacity
2
Material
polypropylene
Stiffeners and wave absorbers
Armoured glass
Electric water pump for wetting the brushing equipment
Armoured glass
Discharge method
Three-way dump truck
Payload
2 t
Body capacity
4
Method of opening the sides
"Hinged."
Container tipping mechanism
no
Weight of transported waste
1600 kg
Width of the processed strip
0.5...15 m
Transmission
Hydro-volumetric
Minimum travel speed
0.5
Joystick for speed and direction change
availability
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
