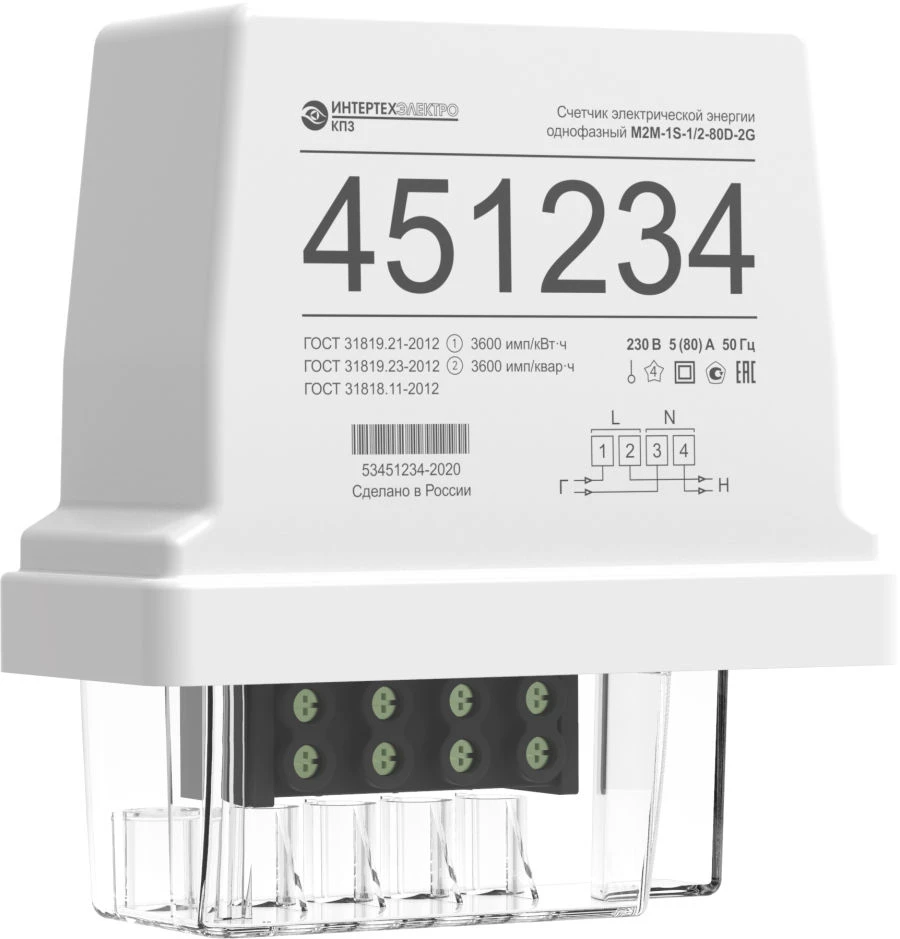

Multifunctional Single-Phase Energy Meter M2M-1S for Efficient Energy Monitoring

Electricity Meters

Manufacturer: KPZ LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

M2M-1S single-phase multifunctional electricity meter is designed for multi-tariff metering of active and reactive electricity of forward and reverse directions in single-phase AC networks. It can be used both autonomously and as part of automated information and metering systems for electricity metering under the SPODES protocol (IEC62056 DLMS/COSEM). M2M-1S meter is designed for outdoor installation and has an increased level of protection against environmental impact. Field of application: enterprises of power engineering, industry, agriculture and housing and communal services; suitable for metering in apartment buildings and private sector.

Specifications

Rated current

5 A

Maximum current

100 A

Nominal voltage

230 V

Maximum operating temperature

70 °C

Minimum operating temperature

-40 °C

Type of readout device

Electronic

Type

Multi-tariff

Number of phases

Dimensions, DxWxH, mm

180x174x82

Operating voltage range

160...265 V

Type of metered energy

Active and reactive

Weight

1.1 kg

Supported protocols

SPODES

Backup communication channel

RS-485; RF; LoRa; PLC; Ethernet; Bluetooth Low Energy (BLE)*

Main communication channel

2G (GPRS)

Mounting type

Mounting on a pole

Accuracy class for reactive energy

2,0

Active accuracy class

1,0

Type of product according to PP RF 616

Instruments and other instruments for measurement, control and testing

Degree of protection against penetration of solid objects and water according to GOST 14254-2015

IP54

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
