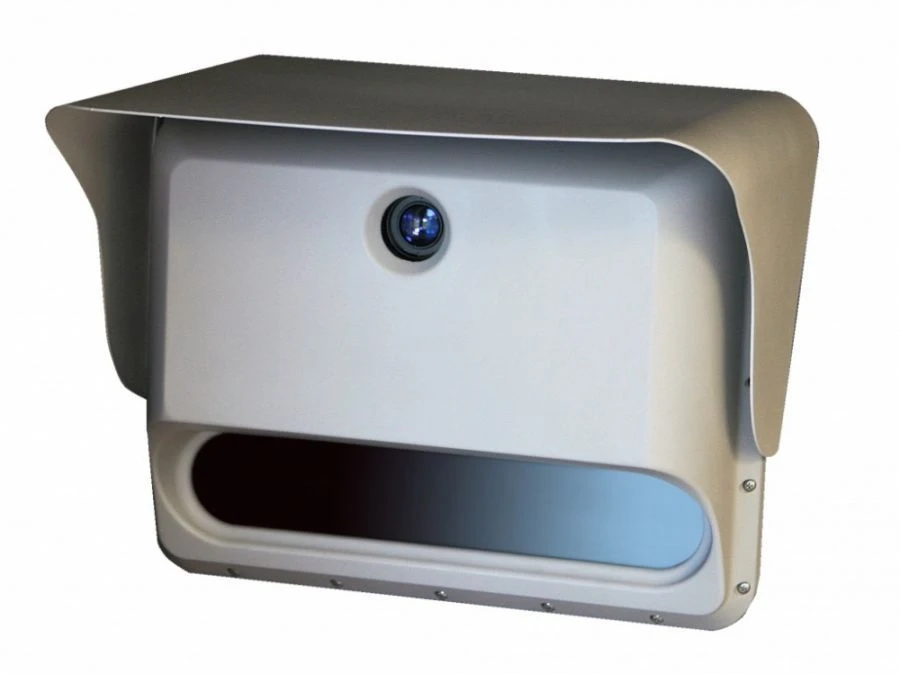

Multifunctional Traffic Control System "Vokord-Traffic R" for Efficient Traffic Monitoring

Measurement and Control Devices

Manufacturer: VOCORD TELECOM CJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Hardware-software complex "Vokord--Traffic R" is a multifunctional intelligent traffic control system for recognition of car number plates and photo-video fixation of traffic violations. The complex is designed for remote measurement of vehicle speed, time of vehicle fixation and its position. The complex fixes state registration marks, collects data on vehicles: their speed, direction of movement, date and time of passing through the control zone of the complex, fixes traffic violations.

Specifications

Measuring range of distance from the complex to the vehicle

10...60 m

Type of product according to PP RF 616

Other tools and instruments for measurement, inspection and testing

Measuring range of the angle between the optical axis of the complex and the direction to the vehicle

0...15

Measuring range of vehicle speed

20...300

Average service life, at least

10 year

Average MTBF, not less than

35000

Power consumption of video radar unit, not more

60 W

AC frequency

SBVVBG

AC voltage

24 V

Atmospheric pressure

84...106.7

Relative humidity, max.

Flat grinder, Specialised grinder %

Operating temperature range

-50...55 °C

Weight of VOCORD Cyclops video radar unit (DxWxH), not more

15 kg

Dimensions of VOCORD Cyclops video radar unit (DxWxH), not more

450x400x400 mm

Boundaries of permissible absolute instrumental error (at 0,95 confidence level) of determining the coordinates of the installat

± 7 m

Tolerance limits of absolute error of reference of the current time of the complex to the UTC (SU) scale

± 1

Absolute error limits of measurements of the angle between the optical axis of the complex and the direction to the TS

±2

Limits of permissible absolute error of measuring the distance from the complex to the vehicle

±1 m

Operating frequency of radiation

24.125

Limits of permissible absolute error of measuring the vehicle speed

± 1

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
