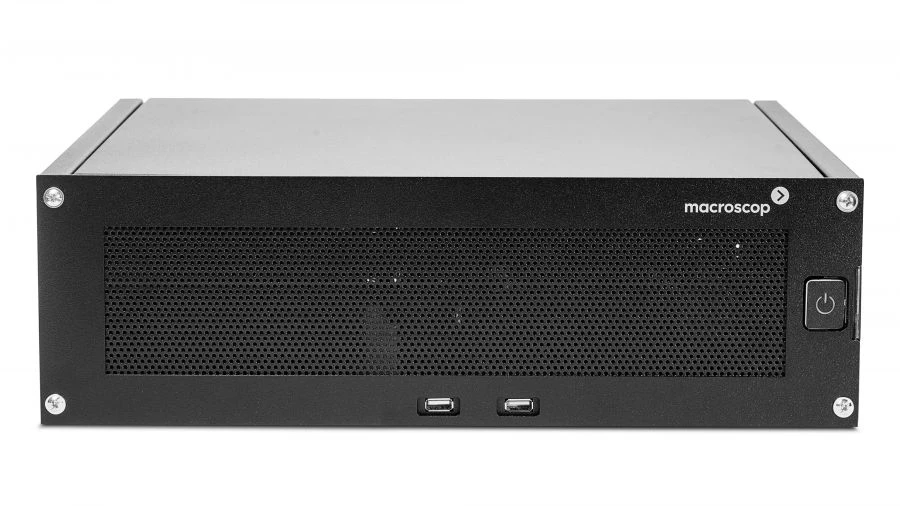

Network Video Recorder Macroscop NVR-16M VMT-5 for Security Systems

Wearable Video Systems

Manufacturer: MACROCOPE TRADE LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Macroscop NVR-16M VMT-5 network video recorder is a hardware and software complex consisting of a server and pre-installed Macroscop software for use as part of IP video surveillance systems. Guaranteed processing and recording of video and audio from 16 IP-cameras. Video stream format: MJPEG, MPEG-4, H.264, H.265, MxPEG.

Software motion detection. Support IP camera detectors. Support rotary IP-cameras.

Support IP camera audio channels. Pre-installed Windows operating system. SSD system media.

Number of places for installing hard discs for the archive up to 5. Housing height 3U for installation in 19" rack.

Specifications

Number of IP cameras to be connected

16 pcs

Number of audio channels

16 pcs

Operating system

Windows

Motion detector

Software. support for IP camera detectors

IP camera resolution

Up to 12 Mpix

recording speed

No restrictions

Number of hard disk drive slots for the archive

5 pcs

System media

SSD

Number of monitors to be connected

1 pcs

Archive recording modes

constant, by operator's command, by camera motion detector, by program detector, by schedule (with possibility to combine recording modes), by system event (scenario).

Supported video stream formats

MJPEG, MPEG-4, H.264, H.265, MxPEG

Supported audio stream formats

PCM, G.711U, G.711A, G.722.1, G.726, G.729A, GSM-AMR, AAC

Supported standards

ONVIF, PSIA

Display Mode

Multiscreen - channel grid and mutual arrangement of channels in the grid can be changed during operation

Support for "alarm monitor"

Armoured glass

Supports two streams from IP cameras

Armoured glass

PTZ camera control

Armoured glass

Sabotage detectors

Camera flip, camera flare, lens overlap, lens defocus, lens out of focus

Ethernet controller

10/100/1000 Mbps

Installation method

Desktop or 19" 3U rack-mountable

Temperature range

+10°C ... +40°C

Dimensions (W x H x D)

420×130×370 mm

Nutrition

220-240 V, 50-60 Hz

Country of origin

Russia

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
