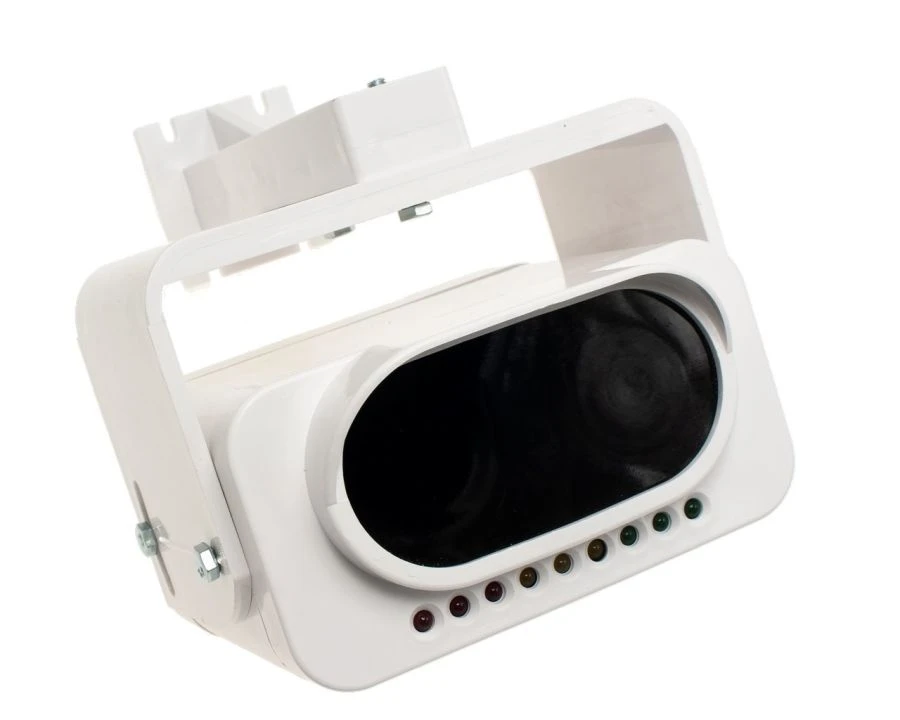

Optical-Electronic Linear Smoke Detector IPD-52 Model IP212-52

Available for Import

Optical-Electronic Linear Smoke Detector IPD-52 for Comprehensive Fire Safety

Fire Alarm Detectors

Manufacturer:IVS LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Linear smoke detector for the protection of premises of large area or length. Distinctive features of this modification: two-position version (receiver + transmitter); working distance from 8 to 100 metres; wide range of angles of adjustment. Receiver and transmitter have the same design and are made in the form of a rectangular plastic housing with a board with radio elements and optical system installed inside it.

Along the inner surface of the case there is an electric screen covering both the board with radio elements and the optical system. The optical system is protected against penetration of insects and dust, and the protection is provided against penetration both from outside the enclosure and from its internal space. The optical system consists of two optical units isolated from each other, i.e.

it has a two-lens (two-channel) design.

Specifications

Range of possible distances between receiver and transmitter

8...100 m

Maximum possible width of the space to be protected by one detector

9 m

Maximum possible room area protected by one detector

900

Detector power supply voltage (receiver and transmitter)

10...30 V

Current consumed by the detector in the "Normal" mode (when the transmitter is powered from the receiver via communication line)

0.0025 A

Current consumed by the receiver in "Normal" mode (when the transmitter is powered from a separate source) not more than

0.0025 A

Current consumed by the transmitter when powered from a separate source (in any operating mode) not more than

0.0012 A

Current consumed by the receiver in the mode of forming the output signal "Attention", not more than

0.011 A

Current consumed by the receiver in the mode of forming the output signal "Fire", not more than

0.04 A

Current consumed by the receiver in the mode of forming the output signal "Fault", not more than

0.011 A

Current surge value at formation of the output signal "Attention"

0.00675...0.00825 A

Maximum possible duration of interruptions or polarity reversals of the supply voltage that do not affect normal operation

0.1

Minimum permissible power interruption interval frequency

Minimum required duration of power failure to ensure resetting of recorded notifications

Typical inertia of detector operation (for "Attention" and "Fire" signals)

Maximum inertia of detector actuation (by signals "Attention" and "Fire")

Inertia of "Fault" notification fixation in the "Fault - memory" mode

3...5

Inertia of "Fault" notification fixation in the "Fault - tolerance" mode

3...5

Inertia of "Fault" notification fixation in the "Fault - Beam" mode

1.5...2.5

Inertia of "Fault" notification fixation in the "Fault - synchronization" mode

40...70

Inertia of "Fault" notification fixation in the "Fault - failure" mode

40...70

Inertia of "Fault" notification fixation in the "Fault - excess" mode

40...70

Inertia of "Fault" notification fixation in the "Fault - Reduction" mode

40...70

Typical value of resistance of closed contacts of optorelay outputs

15 ohm

Maximum value of resistance of closed contacts of optorelay outputs

25 ohm

Maximum permissible current value switched by the optorelay outputs

0.1 A

Maximum permissible voltage value switched by the optorelay outputs

100 V

Limit value of sensitivity compensation at optical beam power reduction

Maximum permissible value of wire resistance of the communication line between the receiver and the transmitter

220 ohm

Weight of receiver and transmitter separately without adjusting device, not more

0.4 kg

Weight of receiver and transmitter separately with alignment device, not more than

0.6 kg

Degree of protection of the shell according to GOST 14254, IP

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
