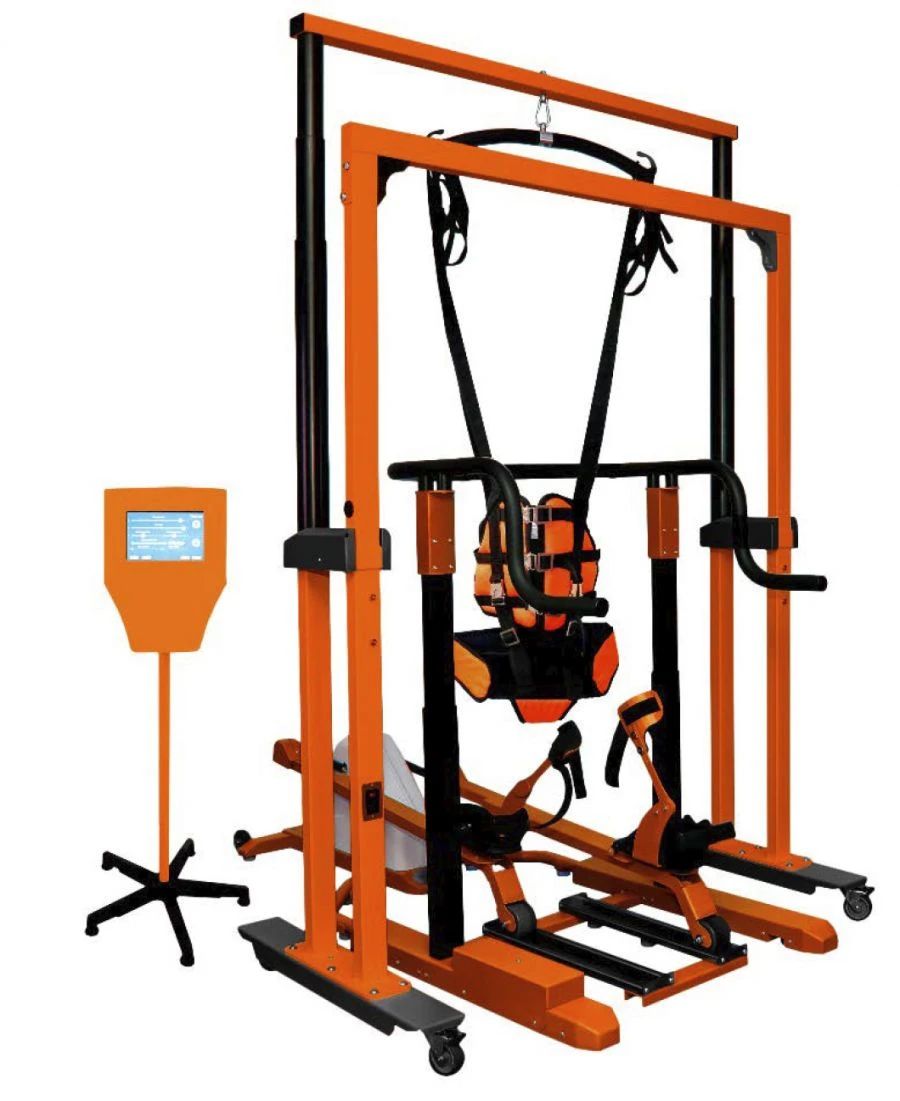

Patient Verticalization Rehabilitation Suspension "Ortorent" for Effective Patient Support
Manufacturer:
Ortorent LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
The rehabilitation suspension for verticalisation of the patient "Orthorent", designed to lift and support the patient for the purpose of transfer or training with adjustable load on the lower limbs.
The suspension can be used for rehabilitation after injuries, for rehabilitation after strokes, for joint diseases of the limbs and for diseases accompanied by muscle weakness and movement coordination disorders.
Scope of application: in the conditions of medical and preventive institutions: in the conditions of gymnastic and rehabilitation halls, rooms for LFK and AFK; as well as at home..
The suspension can be used for rehabilitation after injuries, for rehabilitation after strokes, for joint diseases of the limbs and for diseases accompanied by muscle weakness and movement coordination disorders.
Scope of application: in the conditions of medical and preventive institutions: in the conditions of gymnastic and rehabilitation halls, rooms for LFK and AFK; as well as at home..
Specifications
Equipment
Rehabilitation suspension for verticalisation of the patient "Ortorent", in versions.Model "Ortorent C++ for children (stationary with robotic (kinematic) system of step simulation)"; 2-button control panel.
Overall dimensions of the kinematic system (WxDxH)
720 mm
Height adjustment range of the kinematic system handrails in working condition
720...1220 mm
Transport castors (wheels) integrated in the base of the hanger for easy handling
2 pcs
Diameter of transport rollers (wheels)
75 mm
Kinematic system mass
75 kg
Maximum patient weight
150 kg
Change of load of robotic (kinematic) system of baby step simulation in the range of
0...12 kg
Power consumption of the robotic (kinematic) system for child's step simulation
300 W
Overall dimensions of the hanger (WxDxH)
1900 mm
Infinite height adjustment for patient height in the range of
1765...2745 mm
Internal distance between suspension struts
1030 mm
Handrail spacing
790...870 mm
Transport castors (wheels) integrated in the base of the hanger for easy handling
4 pcs
Diameter of transport rollers (wheels)
4 mm
Suspension weight
70 kg
Overall dimensions in working condition of the suspension with kinematic system (WxDxH)
1735 mm
Patient height
800...1600 mm
Electric lift drive
2 pcs
Maximum power of each drive
800
Suspension power consumption
300 W
Time required to move from the lowest to the highest position with maximum permissible load
30
Minimum continuous operation
8
Minimum distance between where the handrail is gripped by the hand and any other structural element
45 mm
Maximum time to establish the operating mode of each model
3
Maximum turning force of the spacer handle with center of gravity adjustment for bedridden patients
5
Diagonal of colour touch screen display with touch screen technology on control panel
10.1
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
