Available for Import

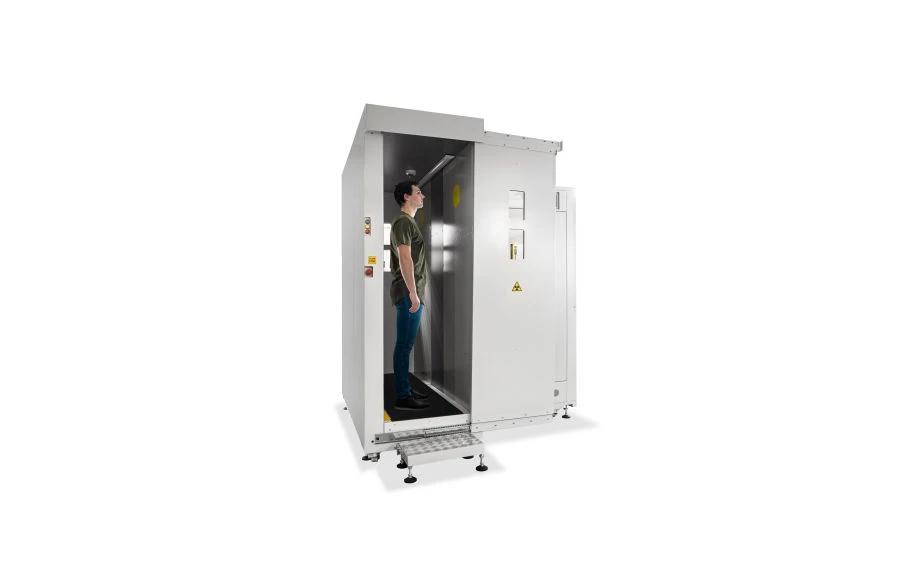

Personal X-ray Inspection System "PERSONA-SCAN" for Full-Height Human Scanning

Advanced Inspection Devices

Manufacturer: DIAGNOSTIKA-M LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Microdose personal inspection unit allows to obtain a projection X-ray image of a person in full height in order to detect hidden under clothing, as well as in the body cavities of the person objects prohibited for transport (cold and firearms, explosives and narcotic substances, explosive devices, etc.).The unit does not pose a threat to the health of the person being examined in it, maintenance personnel and bystanders near the unit.The unit provides: obtaining a non-graphic X-ray image of a person in full height in order to detect the objects hidden under the clothes, as well as those located in the body cavities of the person, prohibited for transport (cold and firearms, explosives and narcotic substances, explosive devices, etc.).

Specifications

Resolution (by wire), mm

34 AWG (0.15 mm) mm

Penetration capacity (steel), mm

22 mm

Irradiation dose per one scan, µSv

Not more than 0.35 kg

Scanning area (H×W), mm

2000×800 mm

Scanning time, sec

Dimensions of the device (HxDxW), mm

2500x2750x2000 mm

Installation weight, kg

900 kg

Time of preparation of the unit for operation

Product power supply

Single phase AC mains: 220 V ±10%, 50 Hz ±1.

Maximum power consumption, kW

0.6 kW

X-ray tube anode voltage, kV

160 kV

Type of product according to PP RF 616

Other tools and instruments for measurement, inspection and testing

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
