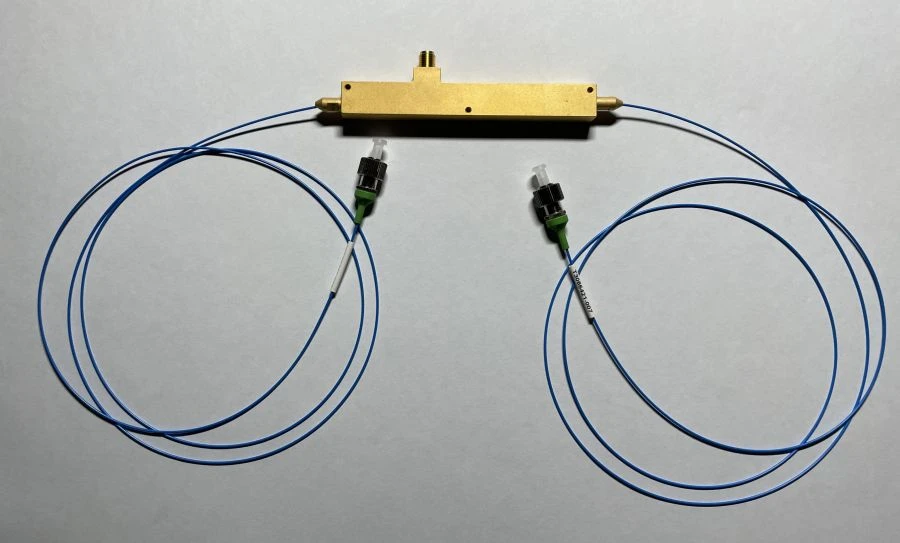

Phase Modulator GRTV.434833.001 for Coherent Electromagnetic Radiation Available for Import

Phase Modulator GRTV.434833.001 for Narrowband Coherent Electromagnetic Radiation

Telecom Equipment Parts
Manufacturer: SMARTQUANTTELECOM LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

Phase modulator GRTB.434833.001 Functional purpose: provision of phase modulation of narrowband, linear-polarised coherent electromagnetic radiation in the wavelength range from 1530 to 1565 nm. List of functions: phase modulation of optical signal with wavelength (1550±20) nm by external electrical control signal. Field of application: photonic technologies, laser communication and data recording technologies, telecommunication systems and technologies, scientific research, laser and photonic instrumentation.

Reliability indicators: -Average MTBF 250,000 hours, not less. -Average recovery time not more than 25 minutes. -Average service life of 12 years, not less.

Specifications

Type of rear door(s)
no
Width
24 mm
Length
112 mm
Weight
0.06 kg
Height
10 mm
Number of optical ports
2 pcs
Type of optical ports
FC/APC
Operating temperature range
10...40 °C
Device type
no
Cable type
no
Connector
no
Type of accommodation
no
Availability of fasteners to the support (pole)
no

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
