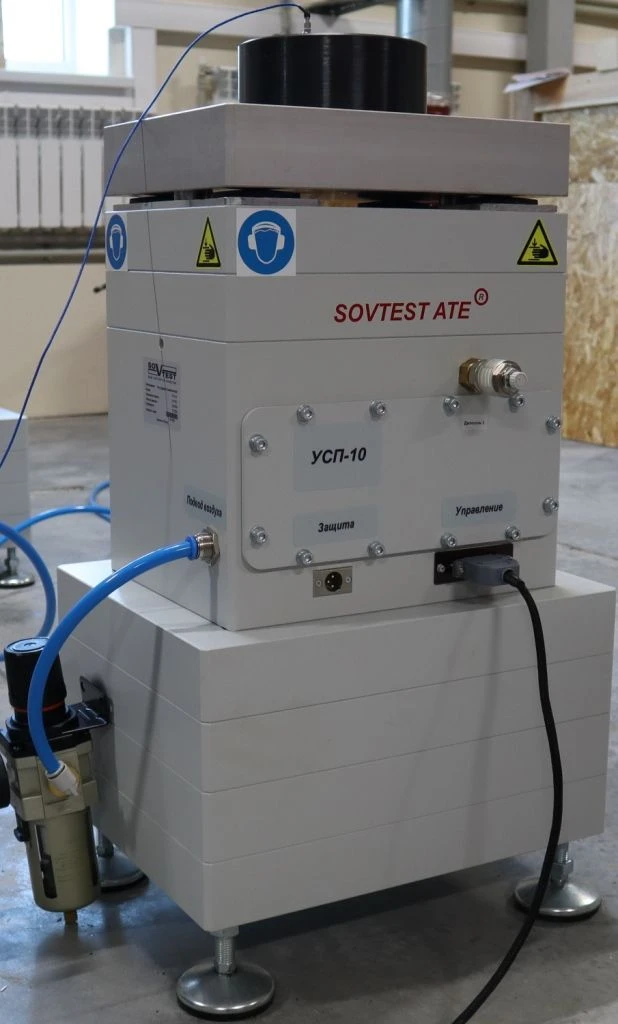

Available for ImportPneumatic Impact Testing Stand USP-10 for Laboratory and Industrial Use
Manufacturer:SOVTEST ATE LLC
Price:Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Stand is designed for testing various and products for strength and stability under the influence of mechanical shocks of single and repeated action in laboratory and industrial conditions. When testing products for impact strength and stability in the stand uses the principle of free fall. Tests are carried out to test the ability to resist the destructive effects of mechanical shocks and maintain their parameters within the values specified in standards and specifications.
Specifications
Type of product according to PP RF 616
Instruments and other instruments for measurement, control and testing
External dimensions (without profile gaskets), mm
420x340x673
Power supply, Hz
SBVVBG
Power consumption, W
600 W
Power supply, V
220 V
Required area for stand installation, mm
450...550 mm
Maximum weight of the product under test, kg
10 kg
Stand weight, kg
340 kg
Beat repetition rate, minute
1...80
Shock pulse duration range, m/sec
0.8...20
Maximum acceleration, metres/second squared
500
Table size, mm
250...320 mm
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
