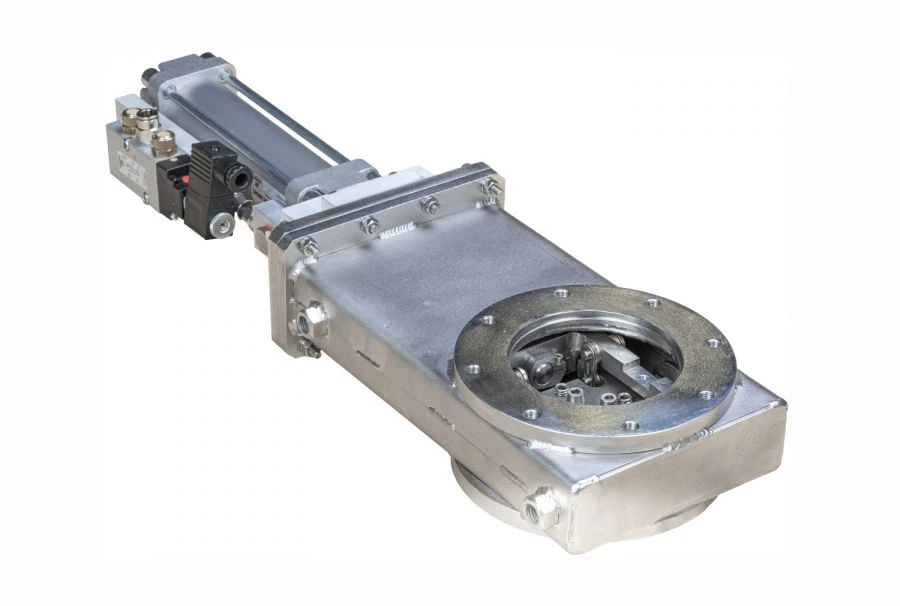

Pneumatic Vacuum Valve ZVpP-200 for Vacuum Systems

Available for Import

Pneumatic Vacuum Valve ZVpP-200 for Sealing Vacuum Systems

Pipeline Control Valves

Manufacturer: VACUUMASH OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Pneumatic vacuum gate valve ZVpP-100 Pneumatic vacuum gate valve ?????-320 Pneumatic vacuum gate valve ?????-160 Pneumatic vacuum gate valve ?????-250

Description

Pneumatic vacuum gate valve ZVpP-200 with a nominal bore of 200 mm is designed for shutting off vacuum systems in the pressure range from 1x10 -6 to 1,07x10 5 Pa. It is manufactured in climatic version UHL4 according to GOST 15150-69. Working environment - air and non-aggressive gases. The temperature of the working environment is from +1 0C to +40 0C. Pneumatic vacuum gate valve ZVpPP-200 is not intended for use in fire-explosive production facilities.

Specifications

Conductivity (theoretical) in molecular mode, m3/s, not less than

9.7

Tightness norm, l-Pa/s, not more than

5.6x10 -4 l-Pa/c

Time of opening (closing) of the gate from the pneumatic actuator, s, not more

Operating pressure range, Pa

1x10 -6 to 1.07x10 5

Pressure difference in closed position on either side of the flap, Pa, not more than

1,07?10 5

Permissible pressure difference at flap opening, Pa, not more than

1,3?10 3

Overall dimensions, mm, not more

900x253x318 mm

Weight, kg, not more

40 kg
