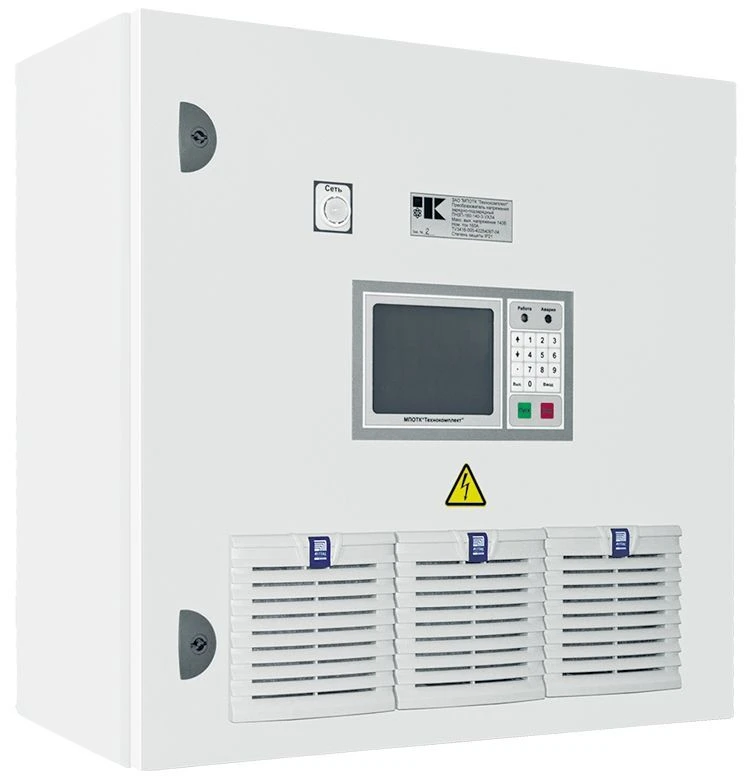

PNZP-M "Dubna" Rechargeable Voltage Converters for Reliable DC Power Supply
Manufacturer:
TECHNOKOMPLEKT OJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Converters are designed for uninterrupted DC power supply of control circuits, protection, automation, signalling, telemechanics, switching devices, high-voltage switches, emergency lighting and other consumers, when the main supply network is switched off, continuous charging and monitoring of the state of accumulator batteries.
The products are used as sources of operational direct current together with the accumulator battery (AB).
The products provide:
a) maintaining charge of the AB with stabilised voltage;
b) charging of discharged AB in automatic three-stage mode (initial charge current limitation stage, voltage limitation stage, thermocompensated voltage stabilisation stage);
c) equalising (equalising) charge of the AB;
d) thermocompensation of AB recharge voltage;
e) automatic control of AB circuit integrity;
f) power supply of power consumers of the DC system in the buffer mode with ABs.
The products are used as sources of operational direct current together with the accumulator battery (AB).
The products provide:
a) maintaining charge of the AB with stabilised voltage;
b) charging of discharged AB in automatic three-stage mode (initial charge current limitation stage, voltage limitation stage, thermocompensated voltage stabilisation stage);
c) equalising (equalising) charge of the AB;
d) thermocompensation of AB recharge voltage;
e) automatic control of AB circuit integrity;
f) power supply of power consumers of the DC system in the buffer mode with ABs.
Specifications
Output power, kVA
30
Degree of protection
IP 54 when mounted on a switch cabinet or stand
Group spare parts
Optional
Isolation monitoring of load output circuits
general insulation resistance monitoring, control range from 5 to 150 kOhm
Thermal compensation of battery recharge voltage
Got it
Input power factor corrector
Passive
Isolation transformer of the standby input and rectifier
no
Isolation transformer at the rectifier input
No, galvanic isolation between the power supply network and the consumer network is provided in the RF conversion link
RFI interference level filter
no
Earthquake-proof version according to MSK-64 scale
6 points; optional up to 9 points (optional)
Protection against reverse current
no
Remote monitoring
Via RS-485 standard external communication channel Modbus RTU data transfer protocol, optionally via IEC 61850 standard external communication channel
Parallel work
Got it
Output voltage
250 V
AC input voltage
380 V
Degree of protection (IP)
IP 51
Adjustable output voltage setpoint
85-300;85-260;85-140;18-75;9-36 ?
Steady-state deviation of the output voltage from the set value in the range of 0.9 to 1.15 nominal voltage
0.5 %
Mains frequency
SBVVBG
Number of feed lines
one
Input connection type
3L+PE
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
