Power Distribution Unit LPDU-14SE32 with 14 Outputs and 32A Input

Available for Import

Power Distribution Unit LPDU-14SE32 for Reliable Power Distribution

Low-Voltage Electrical Panels

Manufacturer: LES-TV LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

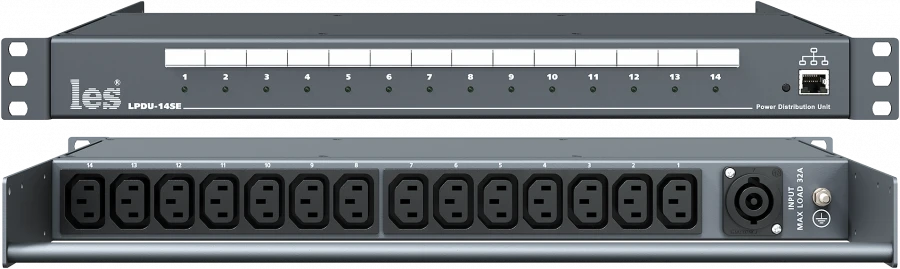

Power distribution unit for 14 IEC C13 connectors, voltage input is on a 32A powerCON connector. All output connectors are numbered and located on the rear panel. Each output has LED indication of voltage presence and is protected by a 10A fuse.

The distributor is controlled via Ethernet: switching off and switching on the outputs, programming the delay time for switching on the outputs, signing the outputs, information about the voltage value at the input and the current at each output. The side fixing angles of the distributor can be turned by 180°, and the device itself is fixed on them flush or with a recess at 57 and 112 mm from the front part of the fixing angle. The delivery includes a discharge rod and a cable connector.

The warranty period is 36 months.

Specifications

Power supply voltage

230 V

Maximum load on each output (in temperature range +5..+40 °C)

10 A

Maximum total load at the LPDU input

32 A

Type of output connectors

IEC 60320 C13

Number of outputs

14 pcs

Input connector model powerCON (Neutrik)

NAC3MP-HC

Number of inputs

1 pcs

Type of supported Ethernet network

100 Base-TX/10 Base-T

Ethernet connector type

RJ-45

Device control interface

Web interface

Overall dimensions with unloading bar (W - H - D)

483...44 mm

Operating temperature range

5...40 °C

Weight

3.8 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
