Power Distribution Unit with Dual Inputs, LPCU-14XFE

Available for Import

Power Distribution Unit with Dual Inputs for Automatic and Manual Switching - LPCU-14XFE

Low-Voltage Electrical Panels

Manufacturer:LES-TV LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

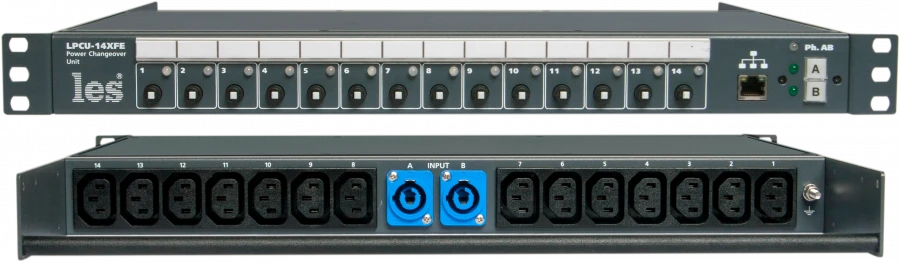

Power distribution unit for 14 IEC C13 connectors. The voltage input is via two powerCON 20A connectors. At the input, the device has an EMI filter and input voltage analyser, an input line phase control indicator, manual switching buttons, an Ethernet connector and a marker strip.

Each output has overload protection - automatic fuse, LED indication of voltage presence. Via Ethernet it is possible to control and diagnose the distributor, control the level of input voltage, programmable overload protection: 1-5 A, support SNMP protocol (optional). The side corners of the mount can be turned 180 degrees.

A discharge rod and input cable connectors are included. The warranty period is 36 months.

Specifications

Power supply voltage

230 V

Maximum load on each output

5 A

Maximum total load at the input of an enabled LPCU

16 A

Electromagnetic interference suppression at 1MHz (typical)

Type of output connectors

IEC 60320 C13

Number of outputs

14 pcs

Model of powerCON (Neutrik) input connectors

NAC3MPA-1

Type of supported Ethernet network

100 Base-TX/10 Base-T

Ethernet connector

RJ-45

Device control interface

Web interface

Support SNMP protocol

Optional

Operating temperature range

5...40 °C

Overall dimensions (W - H - D)

483...44 mm

Weight

4.6 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
