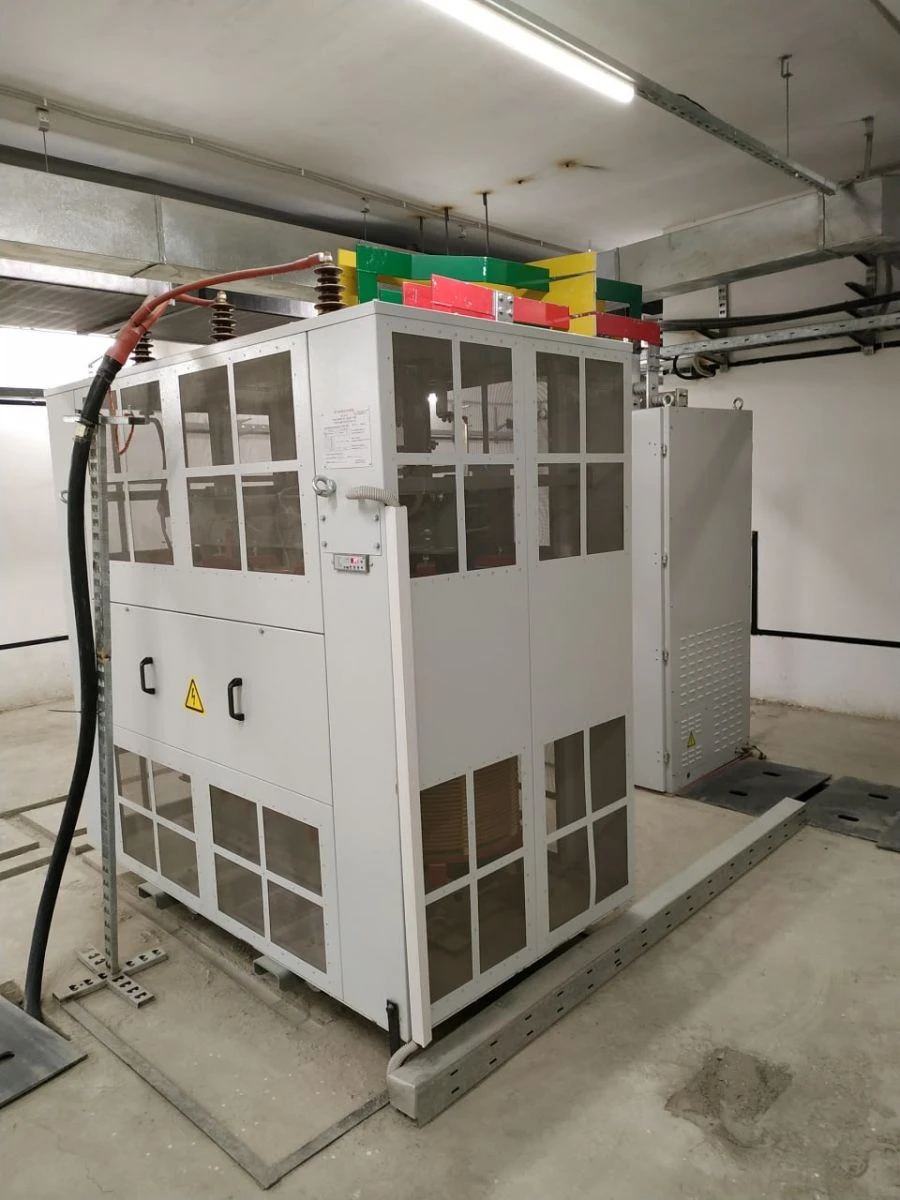

Power Transformer for Own Needs TSZ-1600/10 U3 Available for Import

Power Transformer TSZ-1600/10 U3 for Efficient Electrical Energy Conversion

High-Power Electrical Transformers
Manufacturer: ENSONS LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

Three-phase dry-type transformers with air-barrier insulation with switching without excitation (PBV), designed to convert electrical energy in power networks of three-phase alternating current frequency of 50 Hz. Voltage regulation up to 5 per cent in steps of 2.5 per cent PBV is performed by shifting the jumpers. They are installed in industrial premises and public buildings, which are subject to increased requirements in terms of fire safety, explosion protection, environmental cleanliness.

Specifications

Length
2285 mm
Width
1095 mm
Height
2385 mm
LV voltage
0.23...10 kV
Heat resistance class
180 °C
Type
TSZ-1600/10 U3
Model
TSZ-1600/10 U3
Mains voltage
10 kV
Rated power
1600
Dimensions (DxWxH), mm
2285x1095x2385
Save Your Time

Share your requirements for a quick response!

Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
