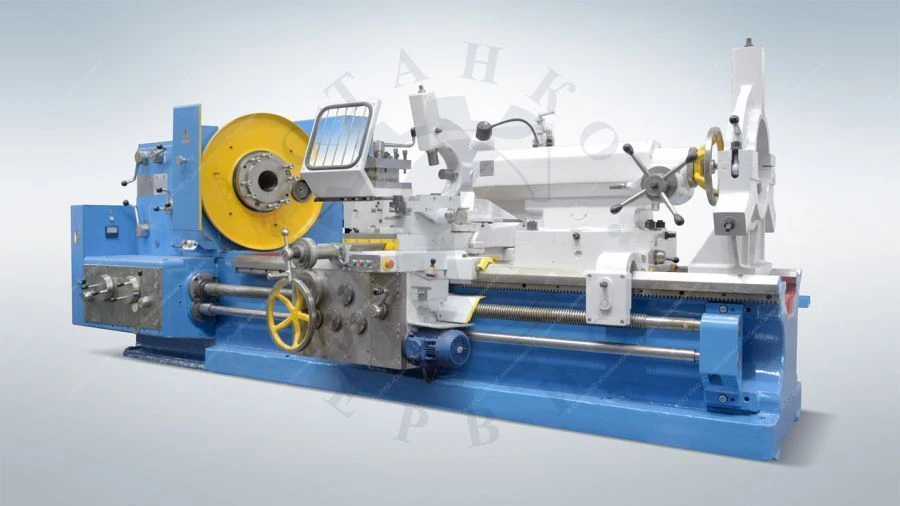

Precision Lathe Machine 1N65-1 for All Turning and Threading Operations
Manufacturer:
STANKOSERVIS LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
The machine is designed for all turning operations, including taper turning and thread cutting - metric, modular, inch
Specifications
Type of product according to PP RF 616
Turning and screw-cutting machines (universal, with CNC, CNC)
Height
1770 mm
Width
2200 mm
Length
4140 mm
Roughness of the cylindrical surface of the sample product after its finish machining
Ra 2.5 µm
Main motion drive power
22 kW
Highest cutting force Pz
41000
Highest torque on the spindle
9.5 kNm
Step limits for machinable modular threads
0.5-24 module
Pitch limits of inch threads to be cut
24-1/4 threads per 1 inch
Step limits of metric threads to be cut
1...96 mm
Maximum lateral movement of the slide
700 mm
Maximum longitudinal movement of the slide
700 mm
Diameter of the cylindrical bore in the spindle
128 mm
Largest diameter of the workpiece to be mounted above the bed
1000 mm
Largest diameter of the workpiece to be machined above the bed
1000 mm
Largest diameter of the workpiece to be mounted and machined above the slide
650 mm
Longest workpiece length
1000 mm
Spindle speed limits
5...500
Machine weight
98.5 t
Accuracy class of machine tools according to GOST 8-82
?
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
