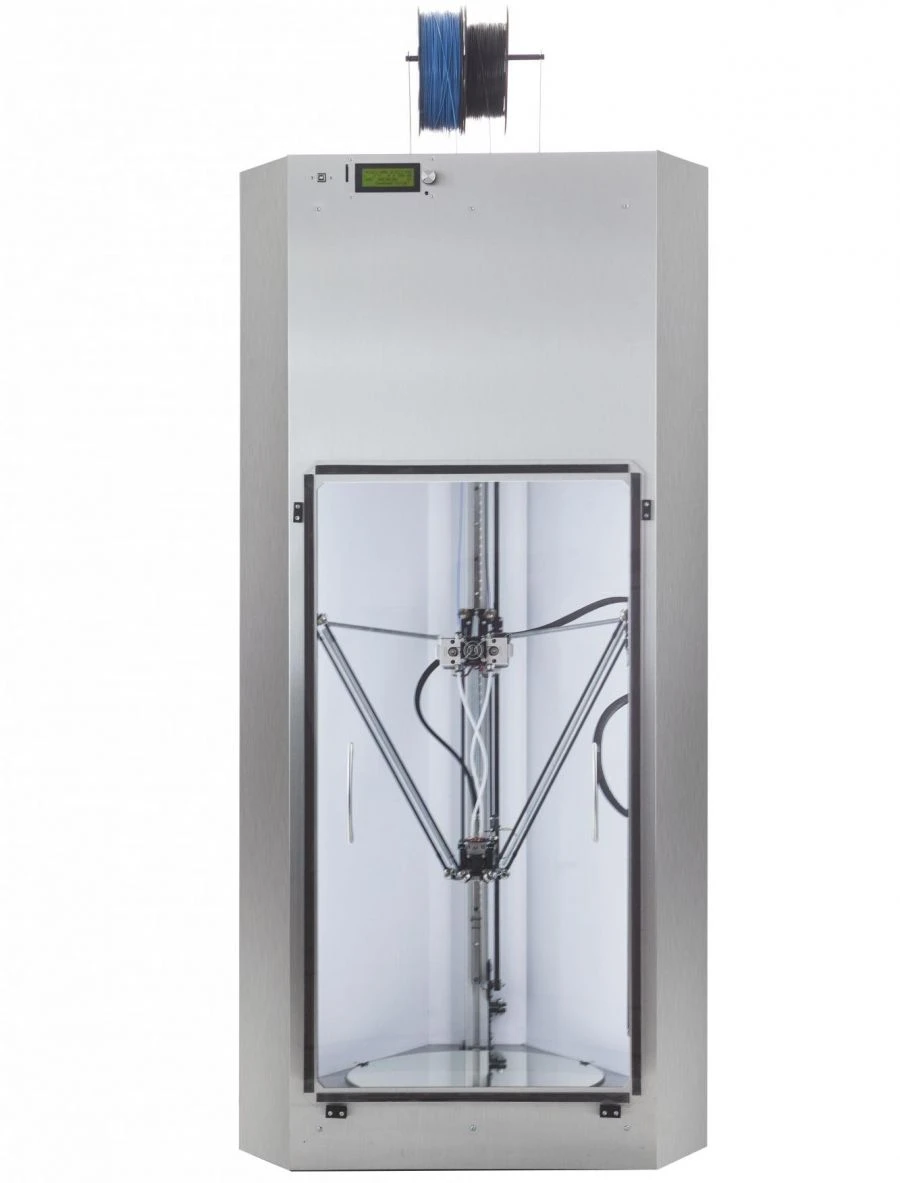

Professional Level 3D Printer with Delta Robot Design - Prism Pro Dual

Available for Import

Professional Level 3D Printer with Delta Robot Design for High-Quality Prints

3D Printing Devices

Manufacturer: TRIDEQ LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Prism Pro Dual- FDM printer of professional level, made on the scheme of "Delta-robot". The printer is equipped with automatic calibration, heated worktable, closed working chamber and extruder cooling system. The Prism Pro Dual prints models up to 400 mm in diameter and up to 860 mm in height, with minimum layer thicknesses from 0.05 mm. The printer prints all major plastics: ABS, PLA, Watson, HIPS and Flex thanks to the double-sided model blowing during printing and the filament compression adjustment mechanism.

Specifications

Nozzle diameter

0.8 mm

Overall dimensions of the printer (wxhxv)

690x795x1675 mm

Printing technology

FDM/FFF

Minimum layer height

0.075 mm

Print area width

400 mm

Printer weight

55 kg

Y-axis print area

400 mm

Filament diameter

1.75 mm

Number of printheads

2 pcs

Print volume

100 litres

Russian language LCD screen

Got it

Maximum nozzle heating temperature

270 °C

Maximum table heating temperature

120 °C

Shape of the print area

Circle

Diameter of the print area

400 mm

Closed enclosure

Got it

??????????????

Got it

X,Y,Z rail guides

Got it

Bar sensor

Got it

X-axis print area

400 mm

Z-axis print area

860 mm

Maximum print speed, cm3/h

Printhead travel speed, mm/sec

150

Type of 3D printer-compatible plastic

ABS, PLA, HIPS, FLEX, SBS, PVA

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
